China cheap single acting hollow hydraulic cylinders factory

FOB Reference Price:Get Latest Price
US $90-120 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
20 Piece/Pieces per Week
Port:
Qingdao, Xingang
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Series Cylinder
Power:
Hydraulic
Body Material:
carbon steel
Maximum Stroke:
50mm
Shaft Diameter:
32mm
Place of Origin:
Shandong, China (Mainland)
Model Number:
KY-5
Brand Name:
Taigao
Product name:
Hollow Hydraulic Cylinder
Brand:
Taigao
Color:
Customized
Type:
Single Acting
Material:
45# Steel
Working Pressure:
63Mpa
Application:
Construction
Certificate:
ISO9001:2008
Factory:
Dezhou, Shandong, China
Payment:
100% T/T
Packaging & Delivery
Packaging Details
wooden package
Delivery Time
according to your quantity
Video Description

              China cheap single acting hollow hydraulic cylinders factory



 hydraulic cylinders



Characteristics

    In addition to the characteristics of common hydro-cylinder, the hollow hydraulic oil cylinder has a through hole in the middle to extend the application scope. The product is small in volume, light in weight, large in tonnage, compact in structure, simple in operation, low in flow rate under ultra high pressure, and can be equipped with high and low pressure pump to improve working efficiency.

    The top of the hollow hydraulic cylinder is equipped with a dust-proof ring. The top and plunger have a guide sleeve, which can absorb the offset force to prolong the service life of the cylinder.

    single acting, spring return, it is easy to be used.

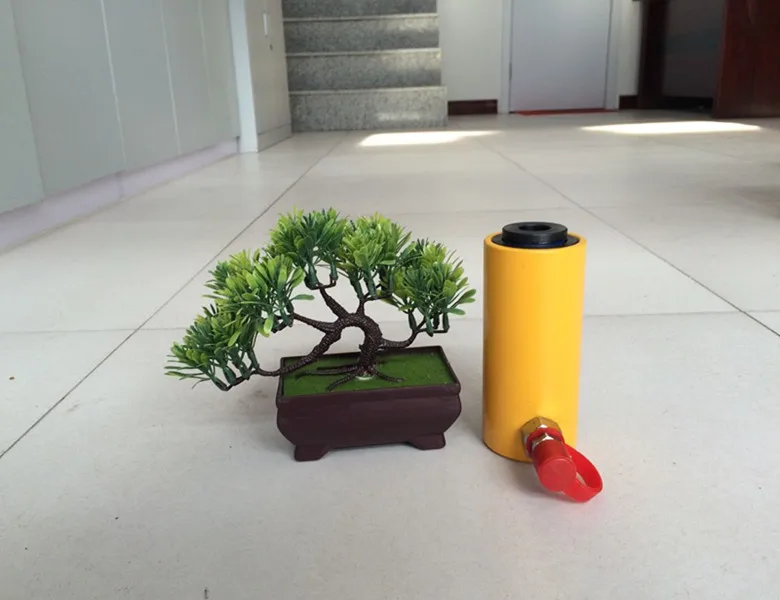

 KY-5 hollow hydraulic cylinders

    Tonnage: 5 MT

    Stroke:50mm

    Rated pressure: 63 MPa

    Intermediate aperture: 18 mm

    Cylinder outer diameter: 60mm

    Cylinder inner diameter: 45mm

    Piston rod diameter: 32mm

    Min-height: 130mm

    Max-height: 180mm

    Whole Weight: 3kg

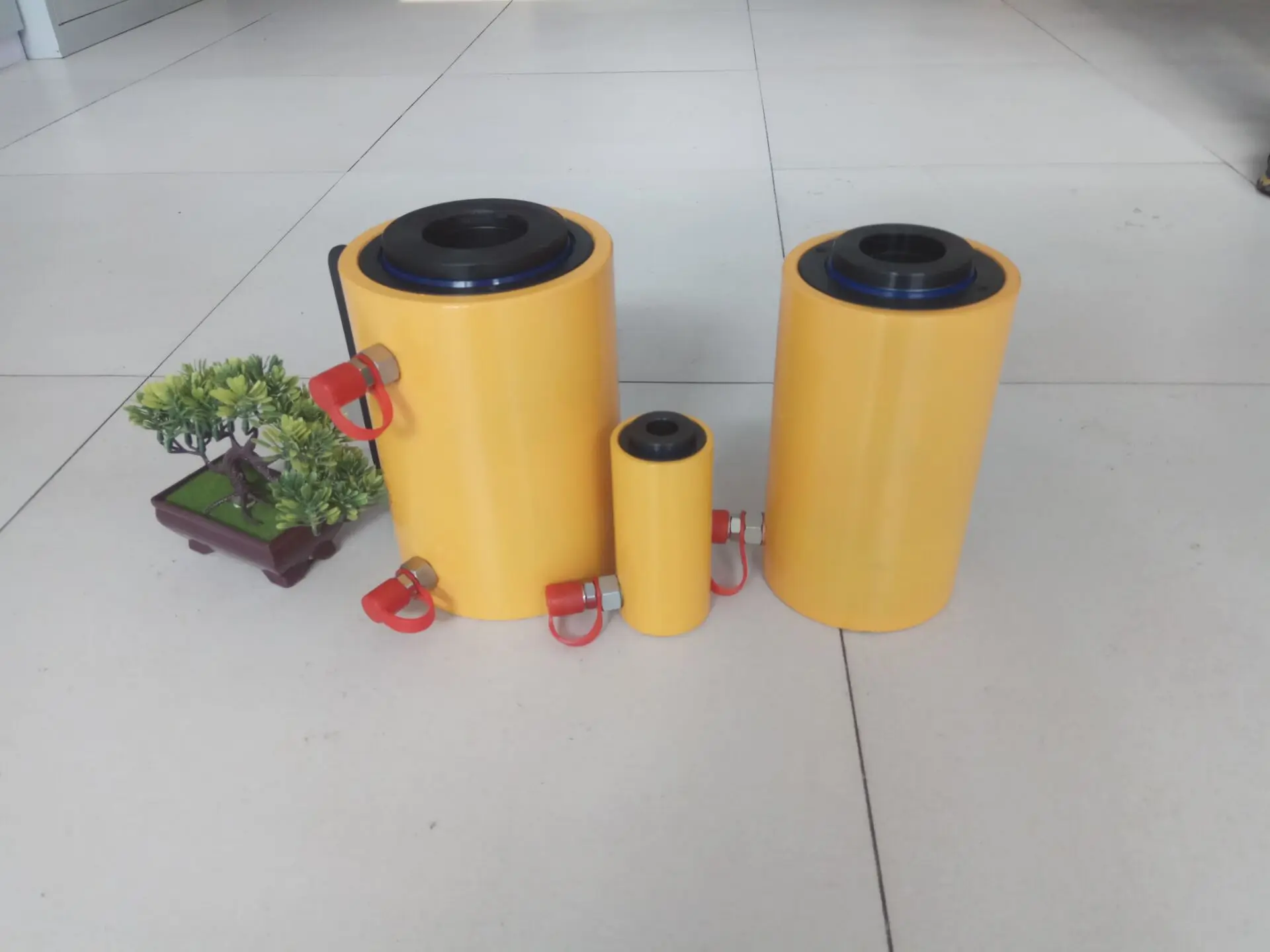

All tonnages of hollow hydraulic cylinders

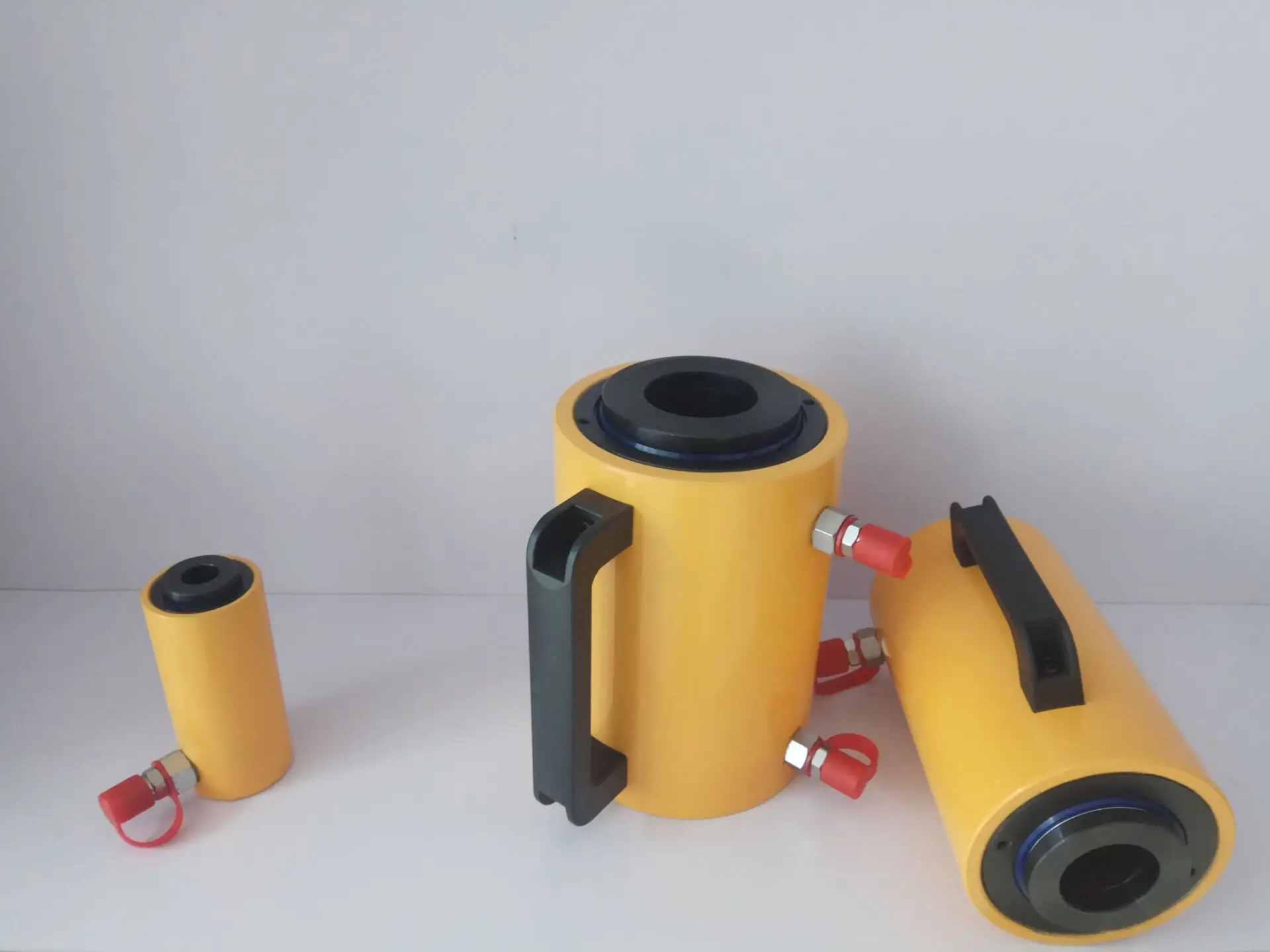

 Detail Pictures of Hydraulic Cylinders





We also have a lot of hydralic parts and tools for your choice.







Our advantages



--15 years experience.

We have over 10 years experience in this sector. That indicates that we can forecast the problems about the orders and product  on and thus avoid them in advance, hence we can reduce bad situations to a large extent.

--Free design.

If you are not ready for the design, our engineers will help you about it freely with there expertise.

--Strict QC

For each order, strict inspections will be put in place for each procedure during their processing. The negative products will be ironed out before shipping

--Stable suppliers

We have cooperated with many accessory suppliers for many years, so we can get cheaper and high quality accessories and thus we can give you a low price and high quality products.

--Smooth Shipping

We have partnership with excellent shipping forwarders, therefore we can promise fast delivery and have the goods well protected.

--Customers from all over the world

We have enough experience about foreign trade and our clients can be found in many countries such as Australia, Japan, Russia and so on.

--Fast reply

We will respond your question with 12 hours!
