China double acting ultra high pressure hydraulic cylinder

FOB Reference Price:Get Latest Price
US $80-158 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
20 Piece/Pieces per Week
Port:
qingdao or tianjin
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Series Cylinder
Power:
Hydraulic, Hydraulic
Body Material:
carbon steel, Carbon steel
Maximum Stroke:
70mm, 70mm
Shaft Diameter:
45mm, 45mm
Place of Origin:
Shandong, China (Mainland), Dezhou ,Shandong ,China (Mainland)
Model Number:
TG-10
Brand Name:
Taigao
Color:
Customized
Type:
Double action
Application:
Industrial
Product name:
Double acting ultra high pressure
Working Pressure:
63mpa
Packaging & Delivery
Packaging Details
Wood packing
Delivery Time
1-7days depends on order quantity

             China double acting ultra high pressure                        hydraulic cylinder



Product Description

 10ton hydraulic cylinder

   Stoke:70mm

    Rated pressure: 63 MPa

    Intermediate aperture: 27mm

    Cylinder outer diameter: 81mm

    Cylinder inner diameter: 63mm

    Piston rod diameter: 45mm

    Min-height:190mm

    Max-height:260mm

    Whole Weight: 5kg







 * QF type separated hydraulic jack, as one type of hydraulic cylinders, used for lifting and jacking.

 * Double acting hydraulic cylinder, with large output force, light weight, can be used at long distance and random space.

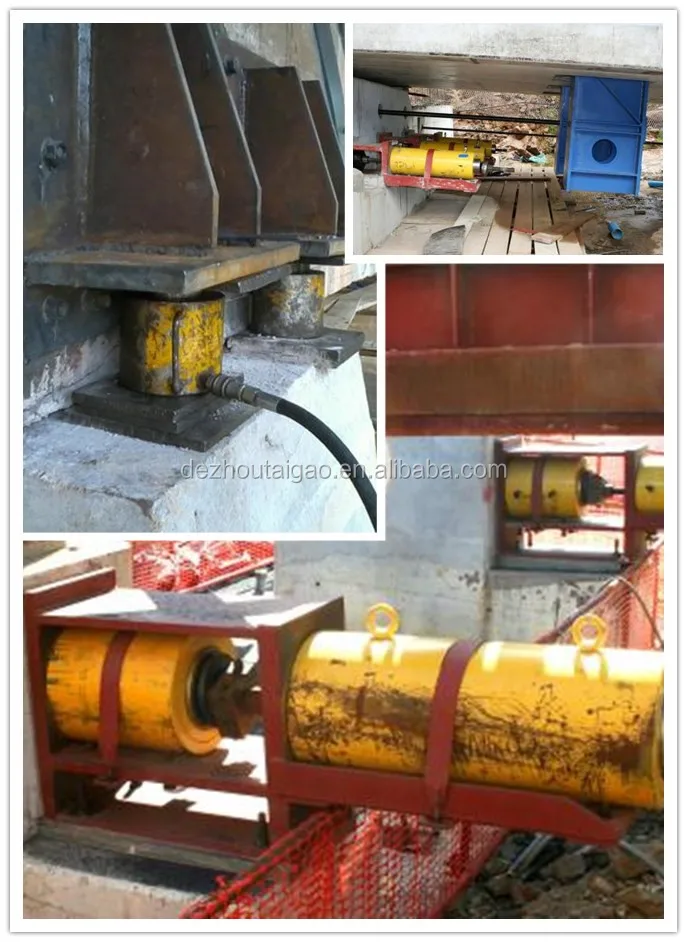

* With the company's ultra-high pressure hydraulic pump station can achieve to pushing, pulling, pressing, squeezing, pushing and other working methods. It is widely used in foundation detection, traffic, railways, bridges, subway, construction, factories and mines and other industries.







Double acting hydraulic cylinder :

    QF type separated hydraulic jack, as one type of hydraulic cylinders, used for lifting and jacking. * Double acting hydraulic cylinder, with large output force, light weight, can be used at long distance and random space.*



Single action hollow hydraulic

   The hollow piston is designed to produce thrust and be used for pulling force. The cylinder body has outer ring thread, plunger has internal thread, and the bottom has installation hole, which makes it be widely used.The top and plunger are equipped with alloy guide sleeve to absorb bias force and prolong the service life of hydraulic cylinder.The top of the cylinder is equipped with a dust ring.Single action and spring back, are much more convenient to use.

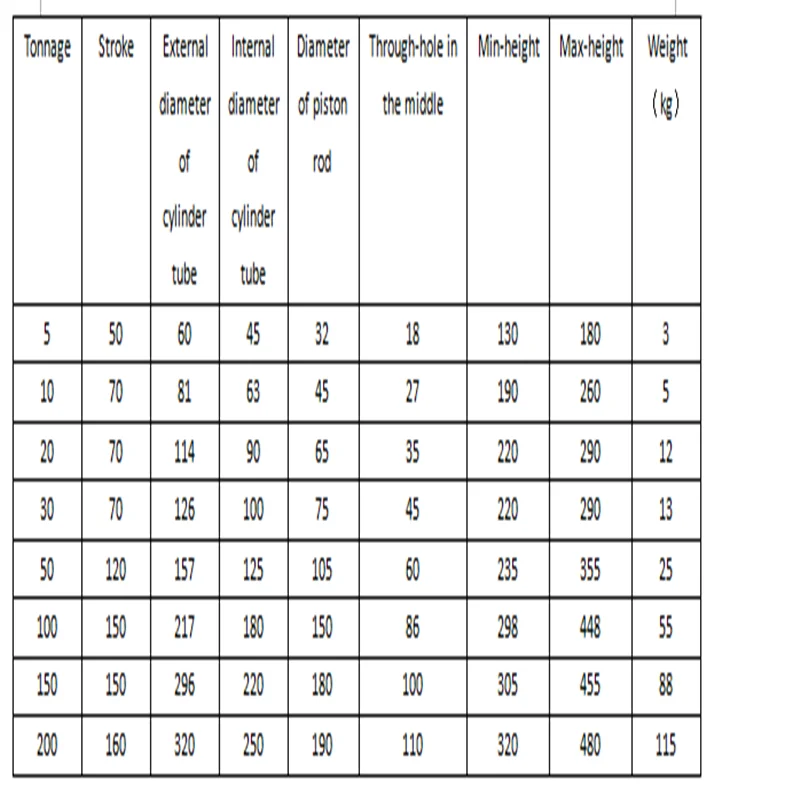

Conventional hydraulic cylinder parameters





Application:



Coordination  company's ultra-high pressure hydraulic pump station can achieve to pushing, pulling, pressing, squeezing, pushing and other working methods, widely used in foundation detection, traffic, railways, bridges, subway, construction, factories and mines and other industries.





Our Services



1. Any inquires will be replied within 24 hours
2. We can provide professional manufacture and have the R&D department
3. After-sale service
Ø Overseas third-party support available
Ø Before delivery the products are strictly inspected
Ø We also can do alibaba trade assurance order
4. All of our products have 12 month warranty
5. The goods will be delivered within 7-15 days after receive payment and packaged by wooden box





Company Information



Dezhou Taigao Im port and Export Co., Ltd. is located in Dezhou City, Shandong Province, China. our company is a hydraulic products manufacturing, sales and import and export of industrial and trade company.

The company has machining center, CNC lathe, grinder, boring machine, rocker drill, pipe locking machine and other processing equipments. It mainly produces ultra-high pressure hydraulic products, including hollow hydraulic cylinder, ultra-thin hydraulic cylinder, single action cylinder, super-large tonnage double-action hydraulic cylinder, valve base, manual pump, electric pump, Hydraulic cracking tool, split stone rod, portable rebar extruder, portable rebar bending machine, portable rebar straightening machine and various hydraulic pipe locks. The company also provides sales of electromagnetic valve, plunger pump, cargo lifters, hydraulic pressure packing-machine, rescue equipment and some others.

Dezhou Taigao import and export tries hard to create a professional sales company which has rich products and quality assurance to become one-stop service of purchase and wholesale of China's hydraulic accessories and equipments.



We can customize it for you
