best quality hydraulic steel bar bender machine rebar bending machine tube bending machine WJ-32

FOB Reference Price:Get Latest Price
US $980-1,200 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
WJ-32
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Taigao
Machine Type:
Other
Raw Material:
Steel Bar
Material / Metal Processed:
Carbon Steel
Power:
Hydraulic
Automation:
manual
Extra Services:
Cut To Length
Certification:
Other
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, No after-sales service, Online support, Video technical support, No overseas service provided
Warranty:
3 years
Product name:
steel bar bending machine
Other name:
Rebar Bending Machine
Color:
Customer Demand
Material:
carbon steel and tool steel
Application:
Building Construction
Usage:
bending
Function:
bending
Main Market:
Southeast Asia, Middle East
Payment:
100% T/T
Supply Ability
Supply Ability:
20 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
wooden box hydraulic steel bar bender machine rebar bending machine tube bending machine
Port
qingdao,tianjin,guangzhou,yiwu,ningbo,shanghai.dalian,shenzhen,haikou,nanjing,fuzhou,xiamen and so on
Lead Time :
Quantity(Pieces) 1 - 30 31 - 100 >100
Est. Time(day) 7 15 To be negotiated
Video Description
Product Description

best quality hydraulic steel bar bender machine rebar bending machine tube bending machine

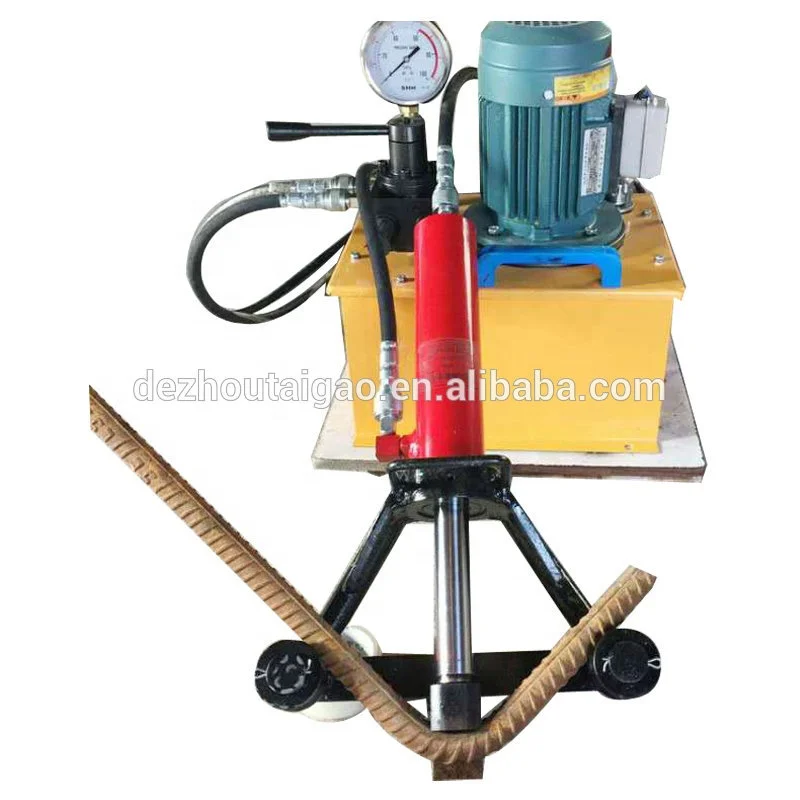

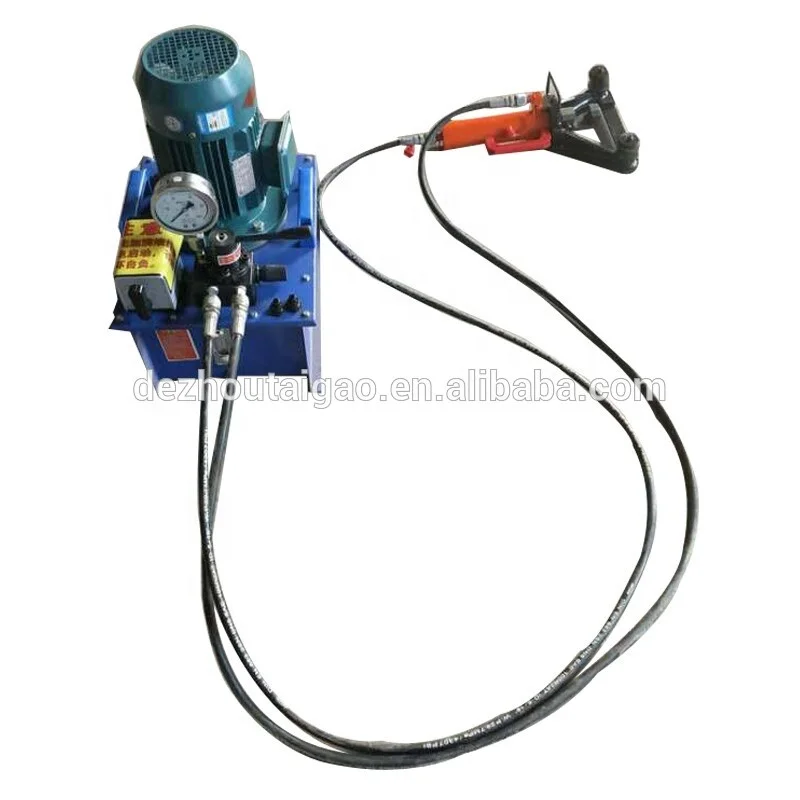

product compositions:

1. ultra-high pressure electric oil pump

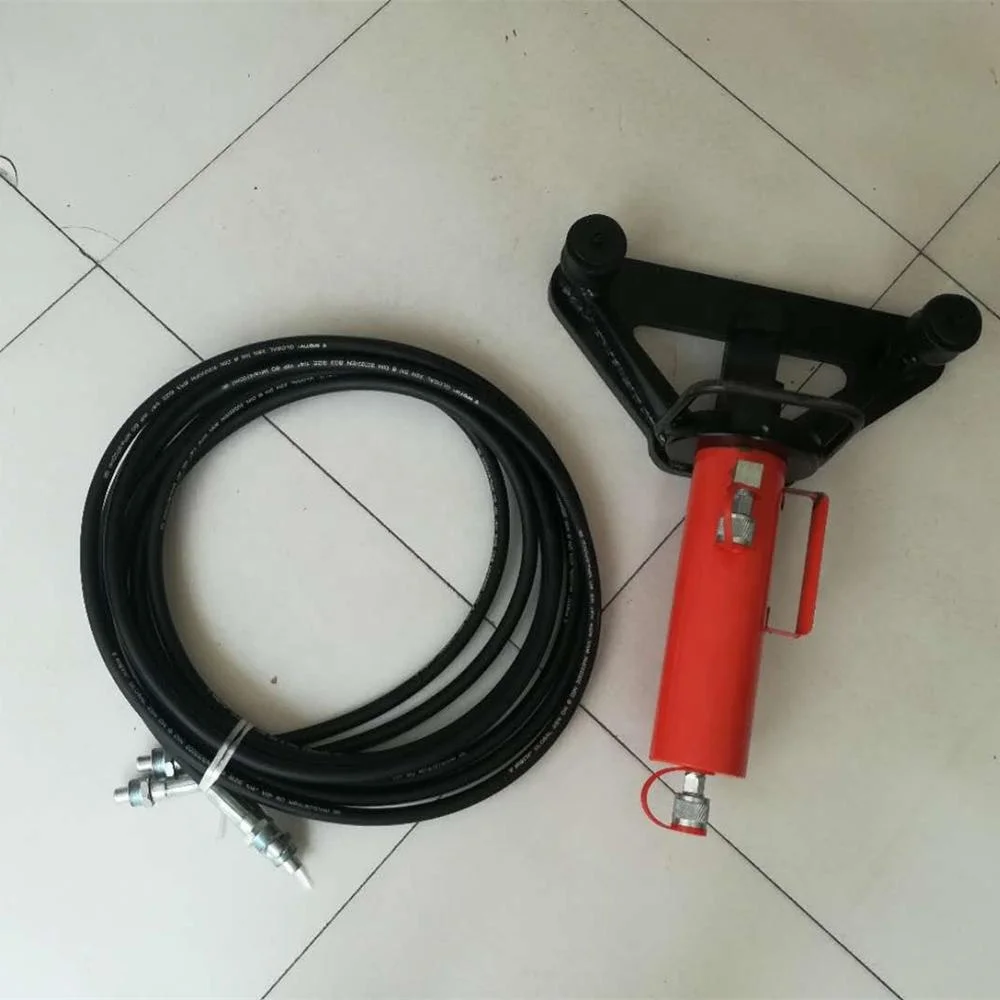

2. portable hydraulic rebar bending machine (straightener)

3. 2 pcs 5 meters long and 70 MPA high pressure standard oil pipes


Detail datas:


Bending reinforcement range: 20-32mm

Bending angle: 0-90°

Straightening angle: 0-90°

Cylinder thrust: 16T

Electric oil pump power: 1.5KW 0.75KW

Power: 220/380v

Maximum bending diameter: 32mm

Minimum bending diameter: 0mm

Bending speed: 8-10s

Bending machine weight: 20kgs

High pressure: 70Mpa

Dimension: 620×360×170mm



Note: We recommend to use 0.75 KW / 1.5 KW motor for reinforcement below 28 mm.


product instructions:



1. Remove the package, check the machine appearance, if any query, please contact the service hotline with 24 hours service.

2. Add hydraulic oil into electric oil pump, 32 antiwear hydraulic oil in winter, 46 anti-wear hydraulic oil in other seasons. Add the oil to the middle upper position of liquid level meter on the side of the tank.( 0.75KW motor adds about 16 liters and 1.5 KW motor adds about 35 liters)

3. Please ask a professional electrician (Pls be sure to remember! ! ! Connect with power supply 380V or 220V, pay attention to the clockwise direction of motor running.)

4. connect high pressure tubing, bending machine 2 connectors, electric oil pump 2 connectors.

5. For manual reversing valves, the manual valve has three gears, namely (leftmost position-forward or backward) (middle position-stop (far right-forward or backward)). Please empty the operation after skilled operation to the site for use (Pls be sure to remember!!! ! ! Special remindation is that pulling the manual reversing valve to the center stop position before starting the motor.)

6. start the motor, pull the reversing valve right and left, so that the bending machine piston running idlinging back and forth for 3 times to emptying the air in the curved oil cylinder.

7. Before the operation of the bending machine, we must use the safety cover, if there is no cover please ignore, then can continue the operations.

8. During the operation of the machine, if there is any doubt, please call the service hotline wit 24 hours-service.

9. The warranty period of all factory products is one year if they are not artificially damaged.

Advantages:



1) The whole structure is simple, the operation is convenient, the stability is good, the reliability is high, the quality of rebar bending is guaranteed, and the working efficiency is improved;

2) Suitable for the site work such as the it is difficult for the common bending machine to reach after the steel bar is bound or the concrete is poured;

3) Use ultra-high pressure hydraulic system drive and the bending force is large. The maximum one is 40mm rebar;

4) The machine does not need to replace the working head, it can bend and straighten the rebar. The speed of bending and straightening is fast;

5) The machine is simple operation, labor saving and easy to move.

Bending range: 14-40mm

Bending angle: 90 ° (WU-32, bendable 180 °) bending can be stopped at any angle.

Bending thrust: 10T-20T

Electric oil pump power: 1.5 kW 0.75 KW

Voltage: 380V (optional 220v)

Work pressure: 63mpa

Bending machine dead-weight: 12-14kg

Work efficiency: 1000-2000 pcas can be bended in 18 hours of a day.And a rebar uses 5-10 seconds. Rebar straightening machine is a common project one in the construction process of bridge and housing construction field. Straightening rebars often can not meet the design requirements, the actual construction is contrary to the intent of the design drawings. In order to further optimize the solution to the difficult problems of field construction, our company designed this kind to improve work efficiency. The portable steel bar straightener, which reduces the barbarous construction and can complete the field construction with high quality fastly and effectively, makes the field construction no longer difficult.

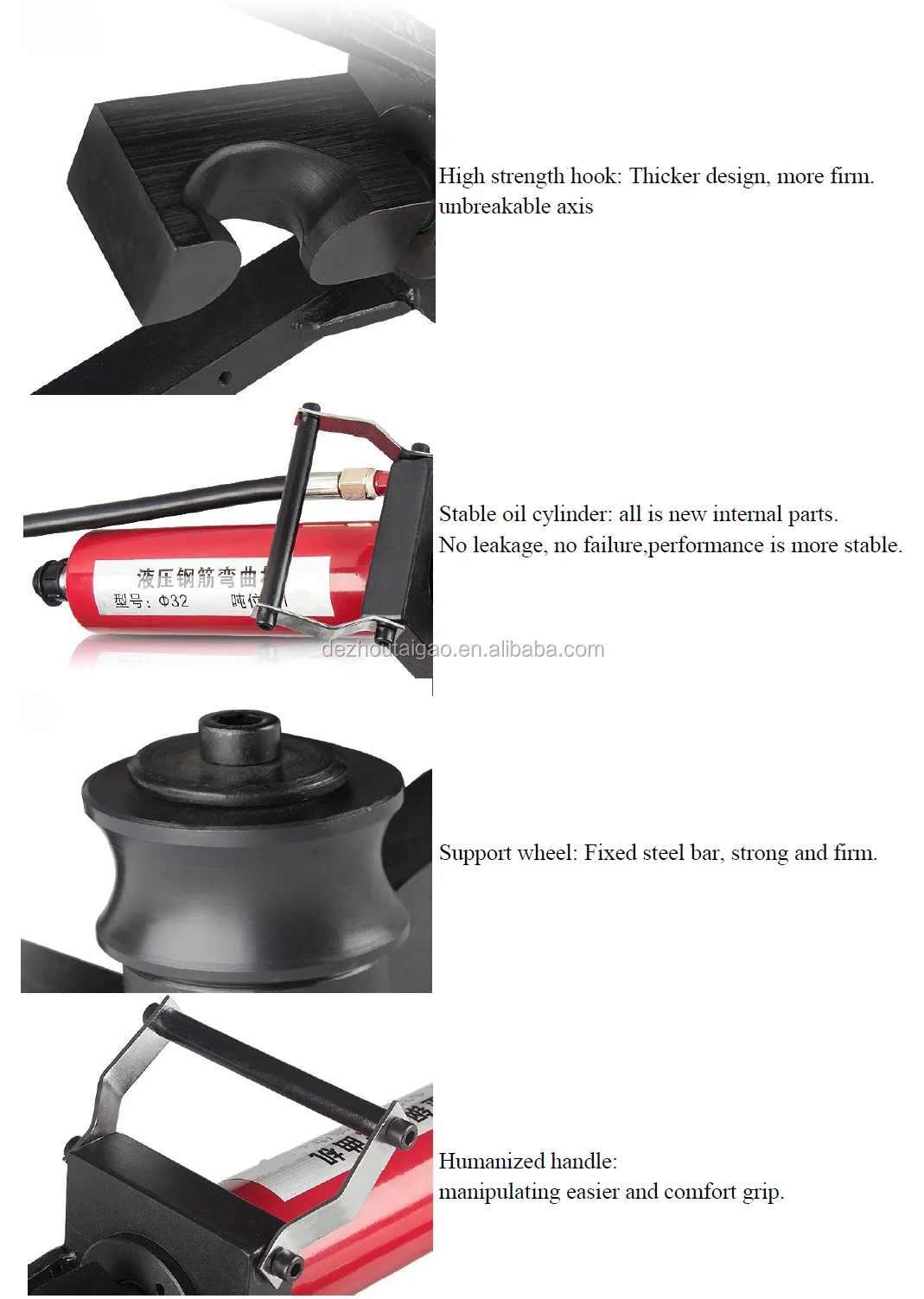

Detailed Images

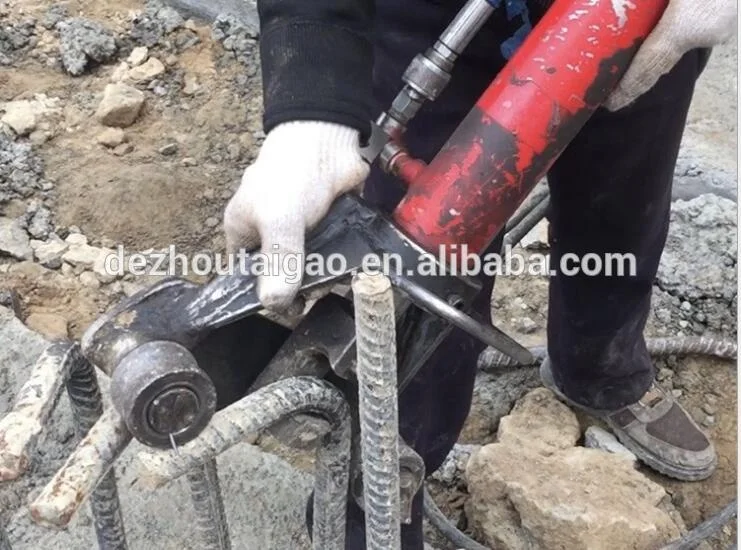

Application:

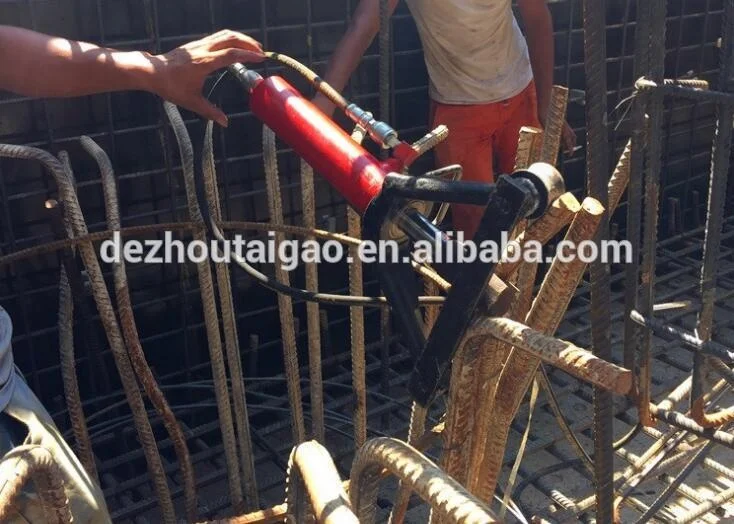

Portable rebar bending machine is widely used in rebar bending of high-rise buildings, highways, railway foundation pile cage and various building skeletons. The portable hydraulic rebar bending machine is driven by hydraulic system. The portable bending machine is small in volume, light in weight and easy in operation. Two people can complete the bending and straightening operation of the rebar in the field, but the traditional bending method needs artificial bending and welding in advance. So it is more labor-saving, which not only ensures the precision, but also reduces the labor intensity. And the safety factor and working efficiency have been greatly improved.
Our Service

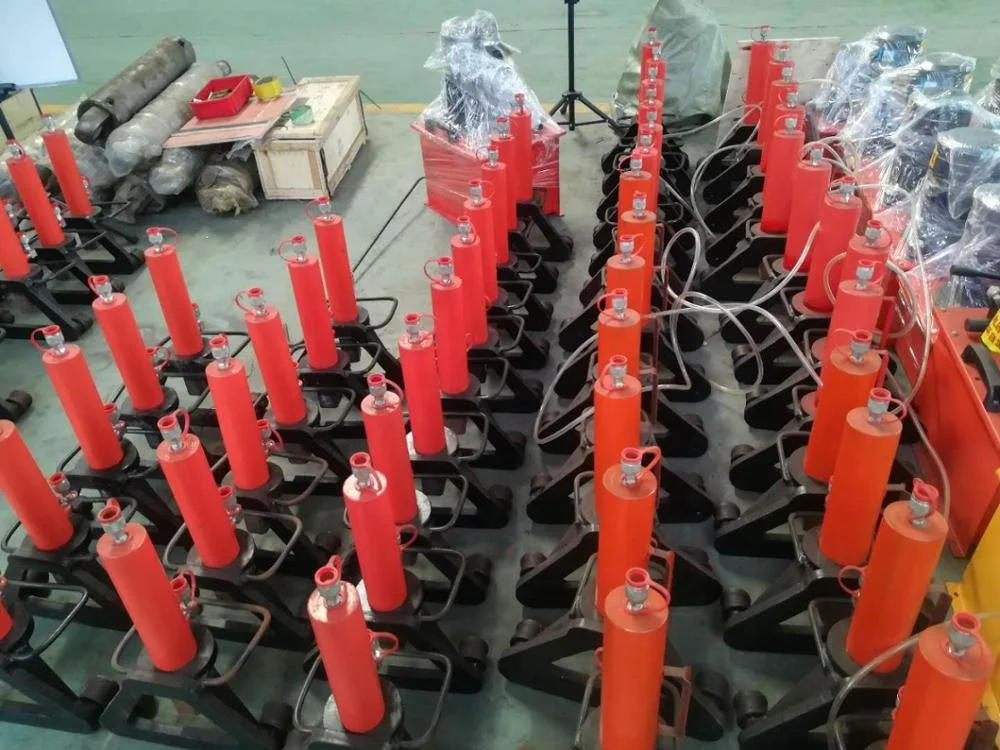

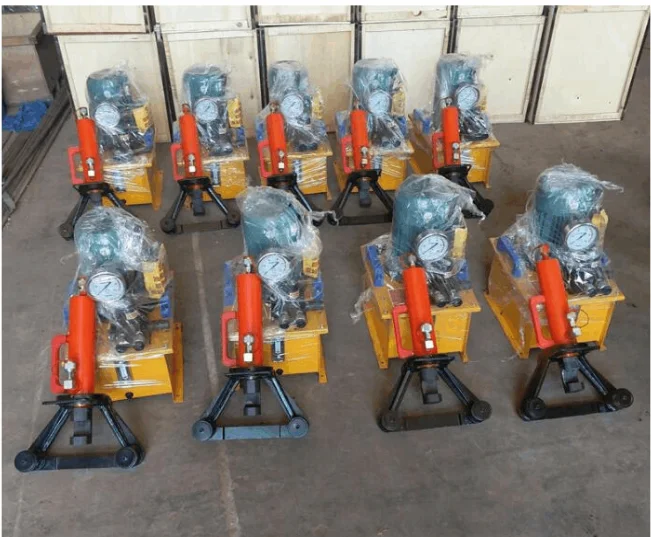

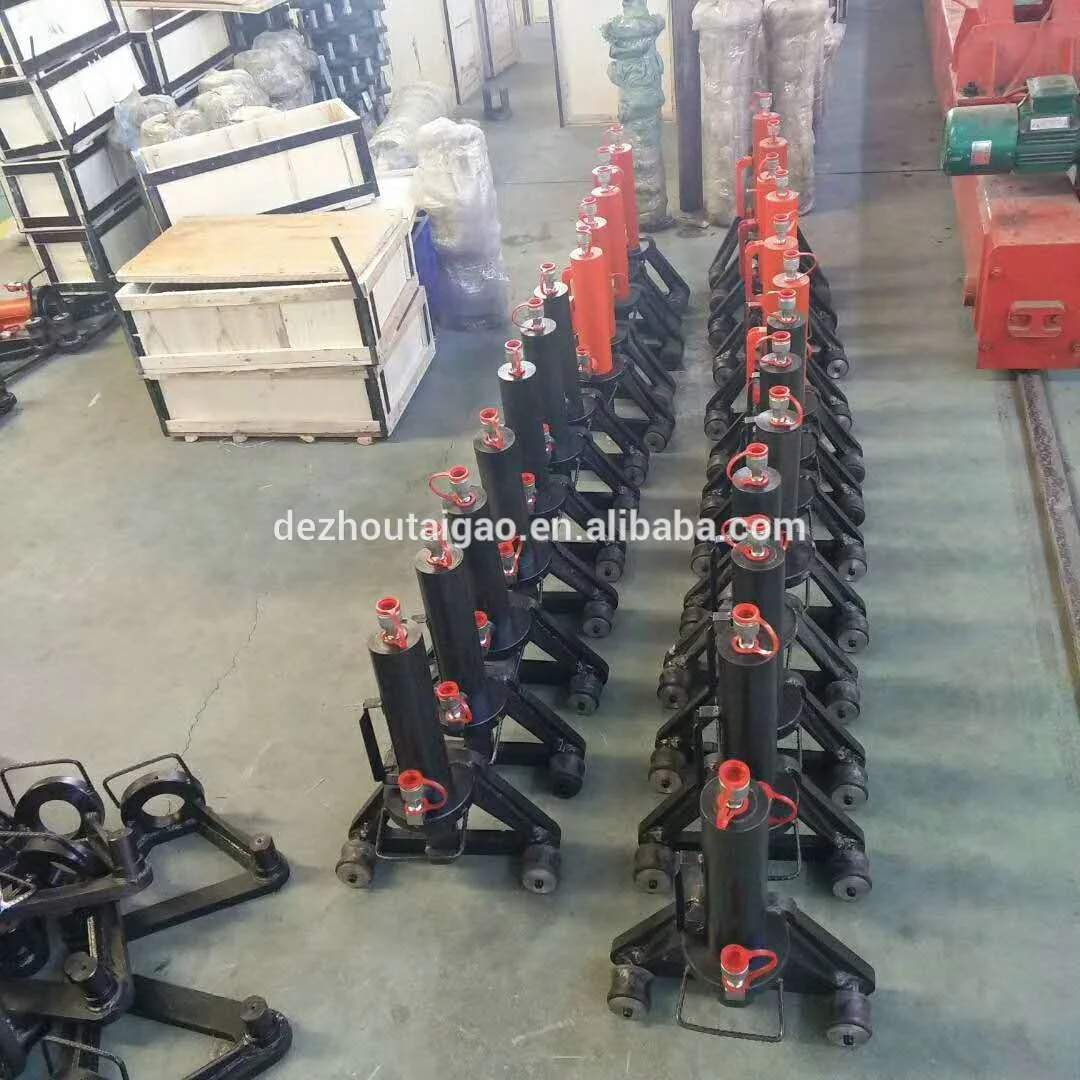

Packing & Delivery
Related Products
Our Company


Dezhou Taigao Import and Export Co., Ltd. is located in Dezhou City, Shandong Province, China. our company is a hydraulic products manufacturing, sales and import and export of industrial and trade company.


The company has machining center, CNC lathe, grinder, boring machine, rocker drill, pipe locking machine and other processing equipments. It mainly produces ultra-high pressure hydraulic products, including hollow hydraulic cylinder, ultra-thin hydraulic cylinder, single action cylinder, super-large tonnage double-action hydraulic cylinder, valve base, manual pump, electric pump, Hydraulic cracking tool, split stone rod, portable rebar extruder, portable rebar bending machine, portable rebar straightening machine and various hydraulic pipe locks. The company also provides sales of electromagnetic valve, plunger pump, cargo lifters, hydraulic pressure packing-machine, rescue equipment and some others.

Dezhou Taigao import and export tries hard to create a professional sales company which has rich products and quality assurance to become one-stop service of purchase and wholesale of China's hydraulic accessories and equipments.
