China top quality KY-100 double piston acting hydraulic cylinder

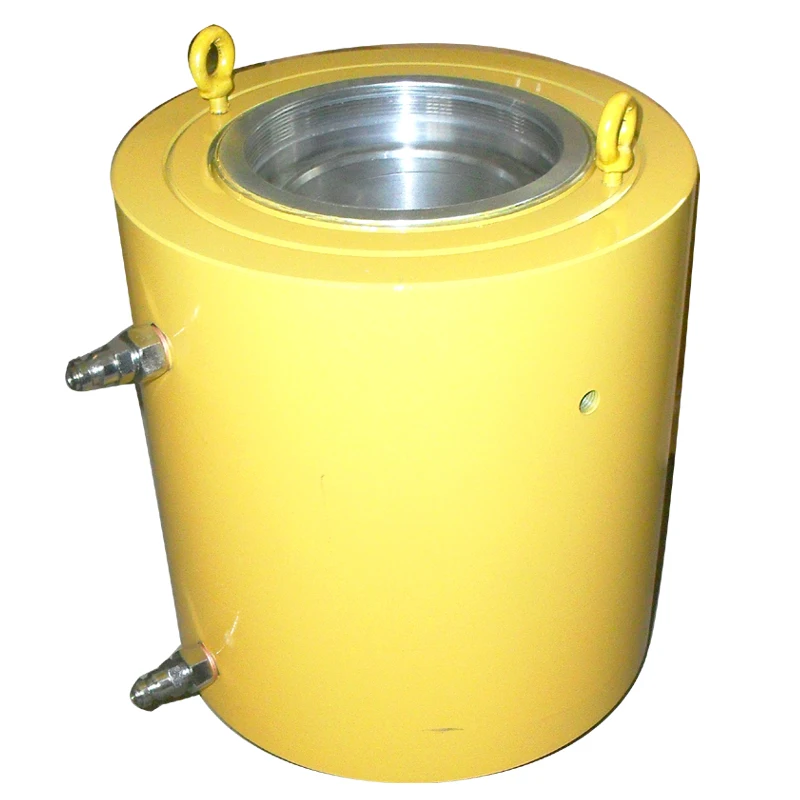

KY-100 hollow hydraulic cylinders
Tonnage: 100 MT
Rated pressure: 63 MPa
Intermediate aperture: 86 mm
Cylinder outer diameter: 217mm
Cylinder inner diameter: 180mm
Piston rod diameter: 150mm
Whole Weight: 55kg
All tonnages of hollow hydraulic cylinders:
Single action hollow hydraulic jacks
The hollow plunger is designed to produce thrust and be used for pulling force. The cylinder body has outer ring thread, plunger has internal thread, and the bottom has installation hole, which makes it be widely used.
The top and plunger are equipped with alloy guide sleeve to absorb bias force and prolong the service life of hydraulic cylinder.
The top of the cylinder is equipped with a dust ring.
Single action and spring back, are much more convenient to use.
Double action hollow hydraulic jacks
It is used for lifting. It has large output force, light weight, can be used in any space, and can be used at any distance. With the super high pressure oil pump of our company, it can realize many kinds of operations, such as topping, pulling, pressing, squeezing, pushing and so on. It is widely used in foundation detection, transportation, railways, bridges, subway, construction, factories,mines and other industries.
Customizable to meet the needs of different customers.
Other model hydraulic cylinder as pics show:
we can also customized for you.
Our company introduction
Dezhou Taigao Import and Export Co., Ltd. is located in Dezhou City, Shandong Province,China.
Our company has machining center, CNC lathe, grinder, boring machine, rocker drill, pipe locking machine and other processing equipments. It mainly produces ultra-high pressure hydraulic products, including hollow hydraulic cylinder, ultra-thin hydraulic cylinder, single action cylinder, super-large tonnage double-action hydraulic cylinder, valve base, manual pump, electric pump, Hydraulic cracking tool, split stone rod, portable rebar extruder, portable rebar bending machine, portable rebar straightening machine and various hydraulic pipe locks. The company also provides sales of electromagnetic valve, plunger pump, cargo lifters, hydraulic pressure packing-machine, rescue equipment and some others.
Dezhou Taigao import and export tries hard to create a professional sales company which has rich products and quality assurance to become one-stop service of purchase and wholesale of China's hydraulic accessories and equipments.
