Single Acting Hollow Plunger Design Carbon Steel Hydraulic Cylinder

FOB Reference Price:Get Latest Price
US $230-300 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Piston Cylinder
Power:
Hydraulic
Body Material:
carbon steel
Maximum Stroke:
70 mm
Shaft Diameter:
65 mm
Place of Origin:
Shandong, China (Mainland)
Model Number:
KY-20
Brand Name:
Taigao
Product name:
Hollow Hydraulic Cylinder
Brand:
Taigao
Color:
Customized
Type:
Single Acting
Material:
45# Steel
Working Pressure:
63Mpa
Application:
Construction
Certificate:
ISO9001:2008
Factory:
Dezhou, Shandong, China
Payment:
100% T/T
SupplyAbility
SupplyAbility:
20 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
wooden box
Port
Qingdao, Xingang
Lead Time :
10 days after the advanced payment

                    Single Acting Hollow Plunger Design Carbon Steel Hydraulic Cylinder



hollow hydraulic cylinder





Characteristics

    In addition to the characteristics of common hydro-cylinder, the hollow hydraulic cylinder has a through hole in the middle to extend the application scope. The product is small in volume, light in weight, large in tonnage, compact in structure, simple in operation, low in flow rate under ultra high pressure, and can be equipped with high and low pressure pump to improve working efficiency.

    The top of the hollow hydraulic cylinder is equipped with a dust-proof ring. The top and plunger have a guide sleeve, which can absorb the offset force to prolong the service life of the cylinder.

    single acting or double acting hollow hydraulic cylinders, spring self-return, are easy to be used.


  KY-20 single acting hollow hydraulic cylinder

   Tonnage: 20 MT

    Stoke:70mm

    Rated pressure: 63 MPa

    Intermediate aperture: 35 mm

    Cylinder outer diameter: 114mm

    Cylinder inner diameter: 90mm

    Piston rod diameter: 65mm

    Min-height: 220mm

    Max-height: 290mm

    Whole Weight: 12kg





All tonnages of hollow hydraulic cylinders

_20180127113433






The hollow hydraulic cylinders are usually used with the hydraulic oil pump.





Our company introduction

     Dezhou Taigao Import and Export Co., Ltd. is located in Dezhou City, Shandong Province, China. Dezhou Taigao import and export Co., Ltd. and Dezhou Degao hydraulic machinery Co., Ltd. belong to the same company, is a hydraulic products manufacturing, sales and import and export of industrial and trade company.

     The company has machining center, CNC lathe, grinder, boring machine, rocker drill, pipe locking machine and other processing equipments. It mainly produces ultra-high pressure hydraulic products, including hollow hydraulic cylinder, ultra-thin hydraulic cylinder, single action cylinder, super-large tonnage double-action hydraulic cylinder, valve base, manual pump, electric pump, Hydraulic cracking tool, split stone rod, portable rebar extruder, portable rebar bending machine, portable rebar straightening machine and various hydraulic pipe locks. The company also provides sales of electromagnetic valve, plunger pump, cargo lifters, hydraulic pressure packing-machine, rescue equipment and some others.

     Dezhou Taigao import and export tries hard to create a professional sales company which has rich products and quality assurance to become one-stop service of purchase and wholesale of China's hydraulic accessories and equipments.

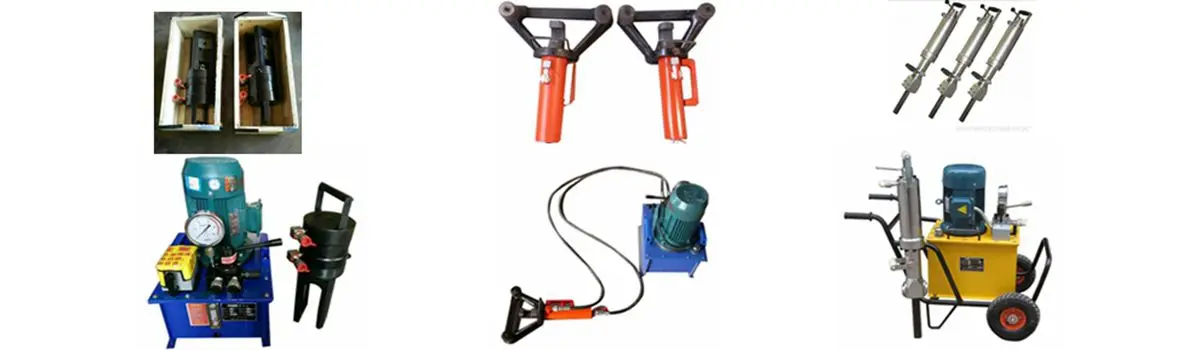

    We also have some hydraulic tools and accessories for you to choose.2.jpg
