Factory supply carbon steel 45# steel hydraulic cylinders cheap prices

FOB Reference Price:Get Latest Price
US $1,500-1,600 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
20 Piece/Pieces per Week
Port:
Qingdao, Xingang
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Piston Cylinder
Power:
Hydraulic
Body Material:
carbon steel
Maximum Stroke:
160 mm
Shaft Diameter:
190mm
Place of Origin:
Shandong, China (Mainland)
Model Number:
KY-200
Brand Name:
Taigao
Product name:
Hollow Hydraulic Cylinder
Brand:
Taigao
Color:
Customized
Type:
Double acting
Material:
45# Steel
Working Pressure:
63Mpa
Application:
Construction
Certificate:
ISO9001:2008
Factory:
Dezhou, Shandong, China
Payment:
100% T/T
Packaging & Delivery
Packaging Details
wooden box
Delivery Time
according to your required quantity
Video Description

          Factory supply carbon steel 45# steel hydraulic cylinders cheap prices



 hydraulic cylinders





Characteristics

    In addition to the characteristics of common hydro-cylinder, the hollow oil cylinder has a through hole in the middle to extend the application scope. The product is small in volume, light in weight, large in tonnage, compact in structure, simple in operation, low in flow rate under ultra high pressure, and can be equipped with high and low pressure pump to improve working efficiency.



 KY-200  hollow cabon steel hydraulic cylinder

    Tonnage: 200 MT

    Stroke:160mm

    Rated pressure: 63 MPa

    Intermediate aperture: 110 mm

    Cylinder outer diameter: 320mm

    Cylinder inner diameter: 250mm

    Piston rod diameter: 190mm

    Min-height: 320mm

    Max-height: 480mm

    Whole Weight: 115kg

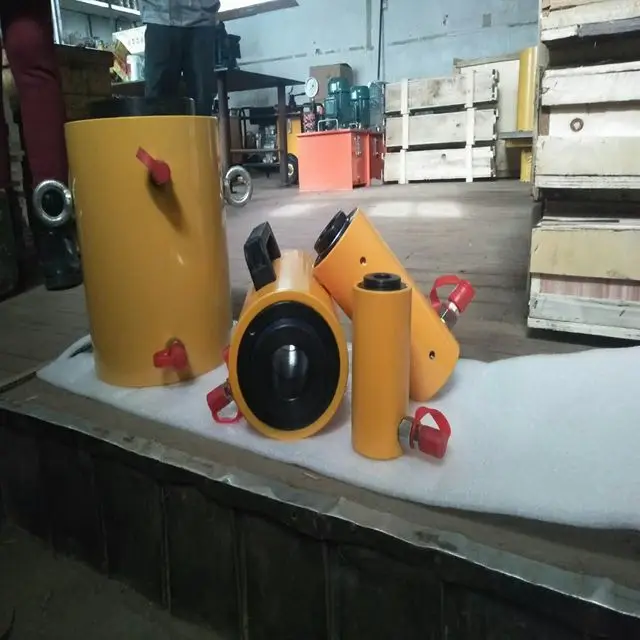

All tonnages of hollow hydraulic cylinders

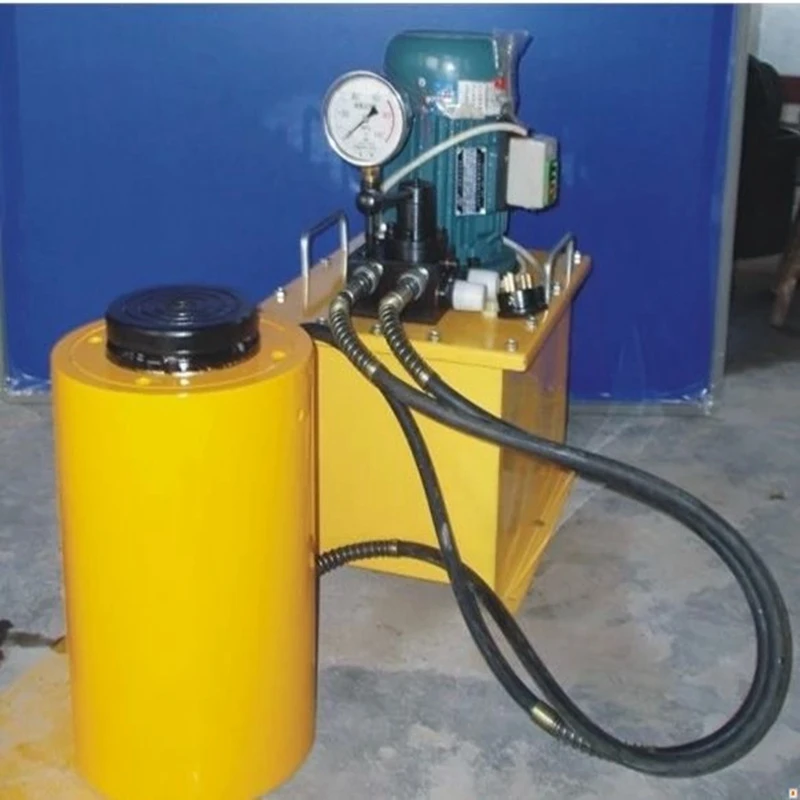

The hydraulic cylinders usually are connected with the hydrauic oil pumps. If you are also interested in the pumps, pls contact me at once.



All the hydraulic cylinders can be customized.





Our company introduction

     Dezhou Taigao Import and Export Co., Ltd. is located in Dezhou City, Shandong Province, China. Dezhou Taigao import and export Co., Ltd. and Dezhou Degao hydraulic machinery Co., Ltd. belong to the same company, is a hydraulic products manufacturing, sales and import and export of industrial and trade company.

     The company has machining center, CNC lathe, grinder, boring machine, rocker drill, pipe locking machine and other processing equipments. It mainly produces ultra-high pressure hydraulic products, including hollow hydraulic cylinder, ultra-thin hydraulic cylinder, single action cylinder, super-large tonnage double-action hydraulic cylinder, valve base, manual pump, electric pump, Hydraulic cracking tool, split stone rod, portable rebar extruder, portable rebar bending machine, portable rebar straightening machine and various hydraulic pipe locks. The company also provides sales of electromagnetic valve, plunger pump, cargo lifters, hydraulic pressure packing-machine, rescue equipment and some others.

     Dezhou Taigao import and export tries hard to create a professional sales company which has rich products and quality assurance to become one-stop service of purchase and wholesale of China's hydraulic accessories and equipments.



We also have some hydraulic parts, accessaries and tools for you to choose.
