double acting high tonnage hydraulic ram cylinders

FOB Reference Price:Get Latest Price
US $1,000-3,000 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Series Cylinder
Power:
Hydraulic
Body Material:
carbon steel
Maximum Stroke:
150mm
Shaft Diameter:
Customised
Place of Origin:
Shandong, China (Mainland)
Model Number:
DZ-3
Brand Name:
Taigao
Product name:
High Tonnage Hydraulic Cylinder
Brand:
Taigao
Color:
Customized
Type:
Double Acting
Material:
45# Steel
Working Pressure:
63Mpa
Application:
Construction
Certificate:
ISO9001:2008
Factory:
Dezhou, Shandong, China
Payment:
100% T/T
Supply Ability
Supply Ability:
20 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
wooden package
Port
Qingdao, Xingang
Lead Time :
10 days after advanced payment

                             double acting high tonnage hydraulic ram cylinders

      high tonnage hydraulic cylinders





Product Description





Characteristics

    In addition to the characteristics of common hydro-cylinder, the hollow oil cylinder has a through hole in the middle to extend the application scope. The product is small in volume, light in weight, large in tonnage, compact in structure, simple in operation, low in flow rate under ultra high pressure, and can be equipped with high and low pressure pump to improve working efficiency.



Composition

    The hydraulic cylinder is usually composed of the rear end cap, cylinder sleeve, piston rod, piston assembly, front end cover and so on. In order to prevent the leakage of oil to the outside of the hydraulic cylinder or from the high pressure chamber to the low pressure chamber, the cylinder and the end cover are in the cylinder and the end cover. A sealing device is arranged between the piston and the piston rod, the piston and the cylinder, the piston rod and the front end cover. On the outer side of the front end cover, there is a dustproof device. The end part of the hydraulic cylinder is also provided with a buffer device; Sometimes it is necessary to install exhaust devices.

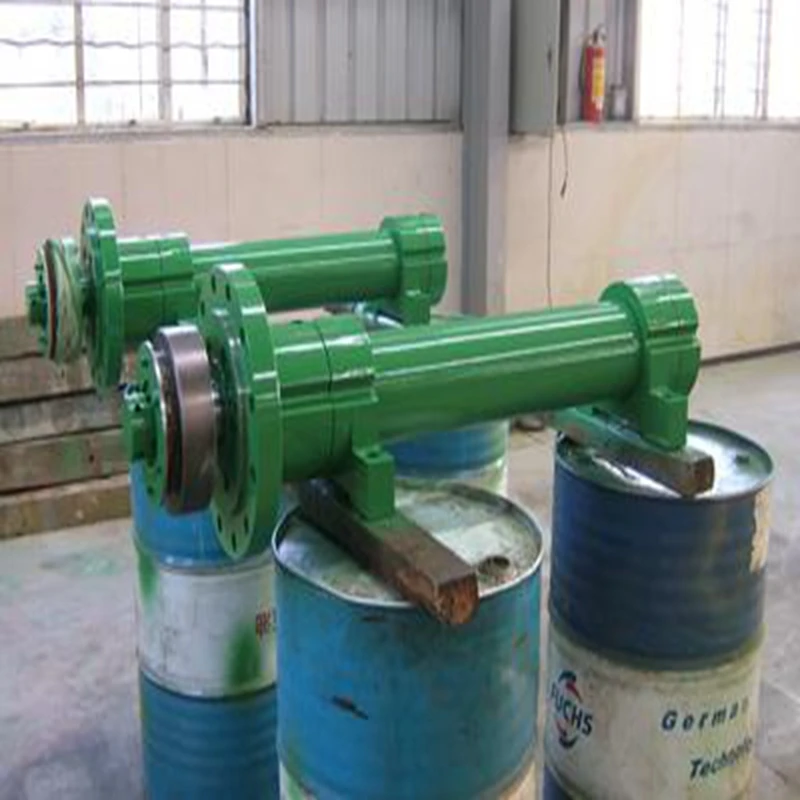

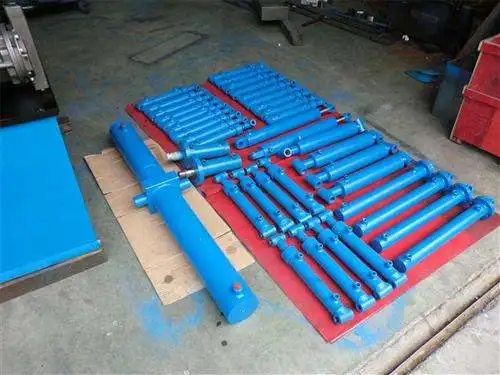

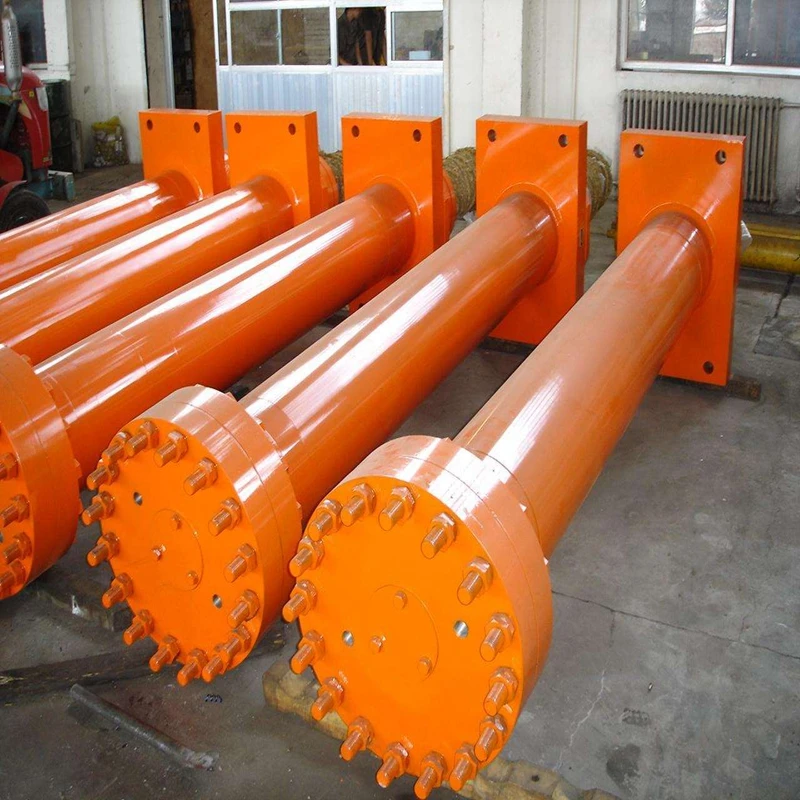

Some other customized high tonnage hydraulic cylinders photos





 Our company introduction

     Dezhou Taigao Import and Export Co., Ltd. is located in Dezhou City, Shandong Province, China. Dezhou Taigao import and export Co., Ltd. and Dezhou Degao hydraulic machinery Co., Ltd. belong to the same company, is a hydraulic products manufacturing, sales and import and export of industrial and trade company.

     The company has machining center, CNC lathe, grinder, boring machine, rocker drill, pipe locking machine and other processing equipments. It mainly produces ultra-high pressure hydraulic products, including hollow hydraulic cylinder, ultra-thin hydraulic cylinder, single action cylinder, super-large tonnage double-action hydraulic cylinder, valve base, manual pump, electric pump, Hydraulic cracking tool, split stone rod, portable rebar extruder, portable rebar bending machine, portable rebar straightening machine and various hydraulic pipe locks. The company also provides sales of electromagnetic valve, plunger pump, cargo lifters, hydraulic pressure packing-machine, rescue equipment and some others.

     Dezhou Taigao import and export tries hard to create a professional sales company which has rich products and quality assurance to become one-stop service of purchase and wholesale of China's hydraulic accessories and equipments.



We also have the hollow hydraulic cylinders.
