China cheap electric hollow hydraulic cylinder factory

FOB Reference Price:Get Latest Price
US $740-840 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Series Cylinder
Power:
Hydraulic
Body Material:
carbon steel
Maximum Stroke:
150mm
Shaft Diameter:
150mm
Place of Origin:
Shandong, China (Mainland)
Model Number:
KY-100
Brand Name:
Taigao
Product name:
electric hydraulic cylinder
Brand:
Taigao
Color:
Customized
Type:
Double Acting
Material:
45# Steel
Working Pressure:
63Mpa
Application:
Construction
Certificate:
ISO9001:2008
Factory:
Dezhou, Shandong, China
Payment:
100% T/T
SupplyAbility
SupplyAbility:
20 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
wooden package
Port
Qingdao, Xingang
Lead Time :
10 days after your payment
Video Description

China cheap electric hollow hydraulic cylinder factory



Product Description



KY-100 hollow hydraulic cylinders



    Tonnage: 100 MT

    Rated pressure: 63 MPa

    Intermediate aperture: 86 mm

    Cylinder outer diameter: 217mm

    Cylinder inner diameter: 180mm

    Piston rod diameter: 150mm

    Min-height: 298mm

    Max-height: 448mm

    Whole Weight: 55kg



IMG_20170330_102032

3



All tonnages of hollow hydraulic cylinders:



$BS`IX[IWG9{{V2ET%]0FCY



QQ20180202195506

QQ20180130171014



Single action hollow hydraulic jacks





    The hollow plunger is designed to produce thrust and be used for pulling force. The cylinder body has outer ring thread, plunger has internal thread, and the bottom has installation hole, which makes it be widely used.

    The top and plunger are equipped with alloy guide sleeve to absorb bias force and prolong the service life of hydraulic cylinder.

    The top of the cylinder is equipped with a dust ring.

    Single action and spring back, are much more convenient to use.



9

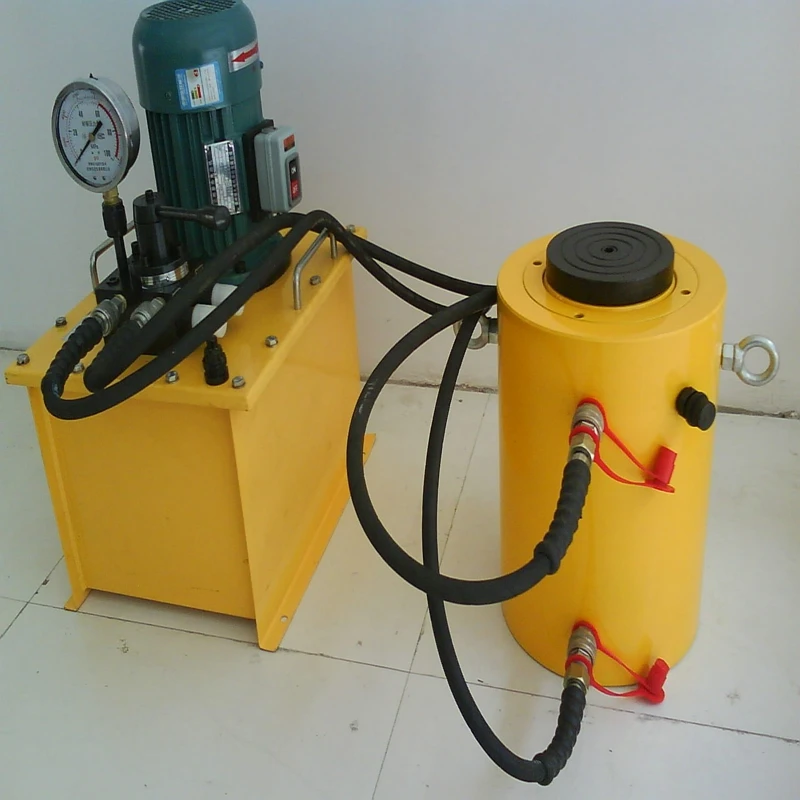

Double action hollow hydraulic jacks



    It is used for lifting. It has large output force, light weight, can be used in any space, and can be used at any distance. With the super high pressure oil pump of our company, it can realize many kinds of operations, such as topping, pulling, pressing, squeezing, pushing and so on. It is widely used in foundation detection, transportation, railways, bridges, subway, construction, factories,mines and other industries.



    Customizable to meet the needs of different customers.




28



Other model hydraulic cylinder as pics show:

we can also customized for you.



timgPVYTYWN9timg9XDUTA4Mtimg2TXI50VUtimgW3HKORLJ

Company Information



Our company introduction



     Dezhou Taigao Import and Export Co., Ltd. is located in Dezhou City, Shandong Province,China.

     Our company has machining center, CNC lathe, grinder, boring machine, rocker drill, pipe locking machine and other processing equipments. It mainly produces ultra-high pressure hydraulic products, including hollow hydraulic cylinder, ultra-thin hydraulic cylinder, single action cylinder, super-large tonnage double-action hydraulic cylinder, valve base, manual pump, electric pump, Hydraulic cracking tool, split stone rod, portable rebar extruder, portable rebar bending machine, portable rebar straightening machine and various hydraulic pipe locks. The company also provides sales of electromagnetic valve, plunger pump, cargo lifters, hydraulic pressure packing-machine, rescue equipment and some others.

     Dezhou Taigao import and export tries hard to create a professional sales company which has rich products and quality assurance to become one-stop service of purchase and wholesale of China's hydraulic accessories and equipments.



We also make other model machines.as below pics show:



QQ20180131102941QQ20180131161731
