150 MT Double Acting Hollow Electric Hydraulic Cylinders Factory Price

FOB Reference Price:Get Latest Price
US $1,300-1,500 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
20 Piece/Pieces per Week
Port:
Qingdao, Xingang
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Piston Cylinder
Power:
Hydraulic
Body Material:
carbon steel
Maximum Stroke:
150 mm
Shaft Diameter:
180 mm
Place of Origin:
Shandong, China (Mainland)
Model Number:
KY-150
Brand Name:
Taigao
Product name:
Hollow Hydraulic Cylinder
Brand:
Taigao
Color:
Customized
Type:
Double Acting
Material:
45# Steel
Working Pressure:
63Mpa
Application:
Construction, Machinery
Certificate:
ISO9001:2008
Factory:
Dezhou, Shandong, China
Payment:
100% T/T
Packaging & Delivery
Packaging Details
wooden box
Delivery Time
according to your required quantity
Video Description

                 150 MT Double Acting Hollow Electric Hydraulic Cylinders Factory Price

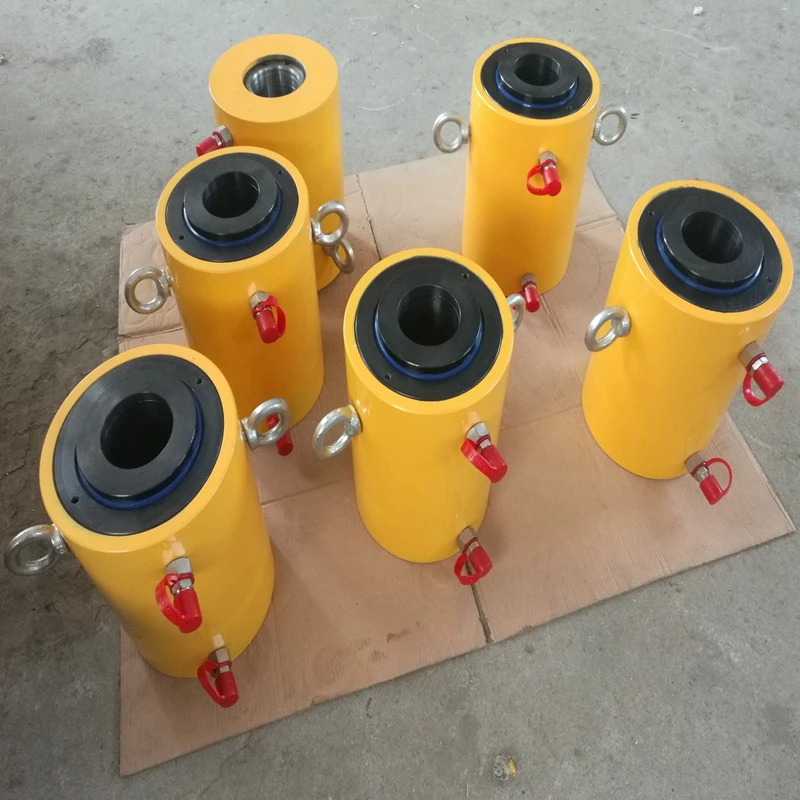

hollow hydraulic cylinders



Characteristics

    In addition to the characteristics of common hydro-cylinder, the hollow oil cylinder has a through hole in the middle to extend the application scope. The product is small in volume, light in weight, large in tonnage, compact in structure, simple in operation, low in flow rate under ultra high pressure, and can be equipped with high and low pressure pump to improve working efficiency.

    The top of the cylinder is equipped with a dust-proof ring. The top and plunger have a guide sleeve, which can absorb the offset force to prolong the service life of the cylinder.

  KY-150 double  acting hollow hydraulic cylinder

    Tonnage: 150MT

    Rated pressure: 63 MPa

    Stroke:150mm

    Intermediate aperture: 100 mm

    Cylinder outer diameter: 296mm

    Cylinder inner diameter: 220mm

    Piston rod diameter: 180mm

    Min-height: 305mm

    Max-height: 455mm

    Whole Weight: 88kg

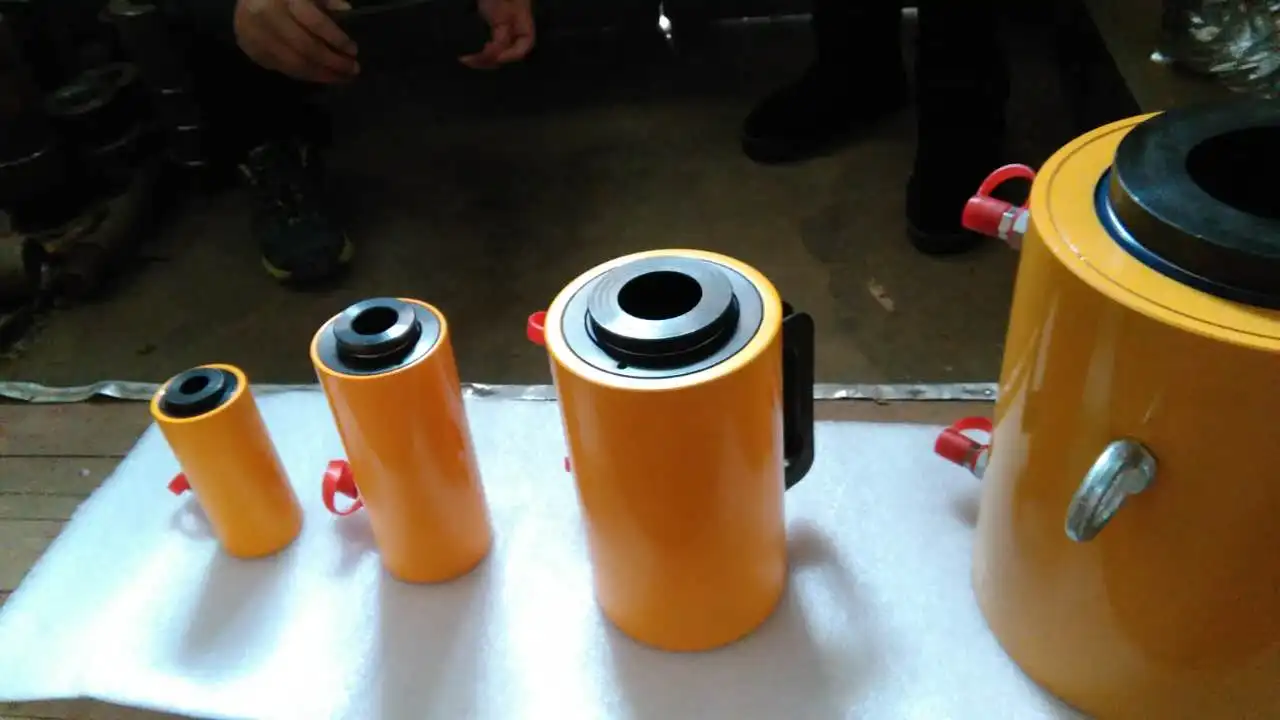

All tonnages of hollow hydraulic cylinders












The hollow hydraulic cylinders are usually used with the hydraulic oil pump.



Our company introduction



     Dezhou Taigao Import and Export Co., Ltd. is located in Dezhou City, Shandong Province, China. Dezhou Taigao import and export Co., Ltd. and Dezhou Degao hydraulic machinery Co., Ltd. belong to the same company, is a hydraulic products manufacturing, sales and import and export of industrial and trade company.

     The company has machining center, CNC lathe, grinder, boring machine, rocker drill, pipe locking machine and other processing equipments. It mainly produces ultra-high pressure hydraulic products, including hollow hydraulic cylinder, ultra-thin hydraulic cylinder, single action cylinder, super-large tonnage double-action hydraulic cylinder, valve base, manual pump, electric pump, Hydraulic cracking tool, split stone rod, portable rebar extruder, portable rebar bending machine, portable rebar straightening machine and various hydraulic pipe locks. The company also provides sales of electromagnetic valve, plunger pump, cargo lifters, hydraulic pressure packing-machine, rescue equipment and some others.

     Dezhou Taigao import and export tries hard to create a professional sales company which has rich products and quality assurance to become one-stop service of purchase and wholesale of China's hydraulic accessories and equipments.





We also have a lot of hydraulic accessories.
