portable hydraulic steel rebar bending machine / steel rebar bender with electric pump

FOB Reference Price:Get Latest Price
US $980-1,200 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Taigao
Model Number:
WQ-40
Machine Type:
Pipe and Tube Bending Machine
Raw Material:
Steel Bar
Material / Metal Processed:
Carbon Steel
Power:
Hydraulic
Automation:
Automatic
Extra Services:
Machining
Certification:
Other
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
steel rebar bending machine
Other name:
Steel Bar Bender
Color:
Customer Demand
Material:
Carbon Steel
Application:
Building Construction
Usage:
Straight
Function:
Straigthen
Main Market:
Southeast Asia, Middle East
Payment:
100% T/T
Factory:
Dezhou, Shandong
SupplyAbility
SupplyAbility:
20 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
wooden box
Port
Qingdao or Xingang
Lead Time :
according to your requirement

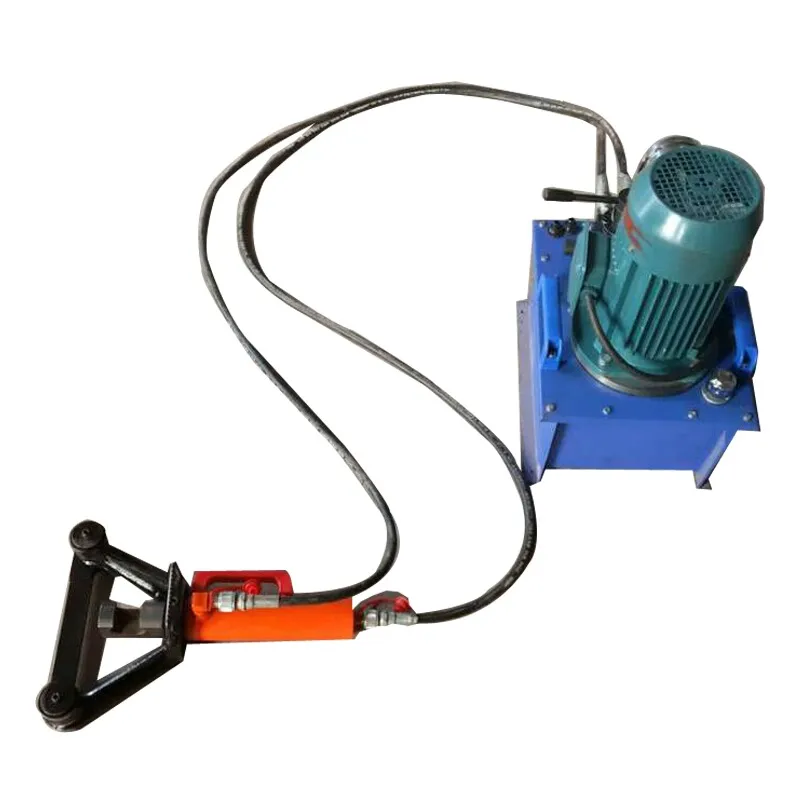

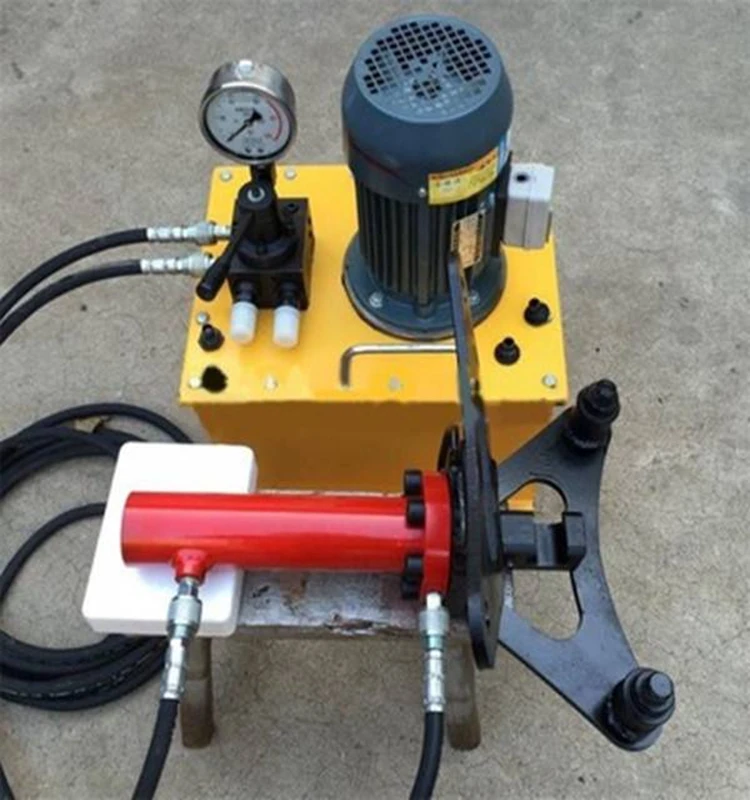

        portable hydraulic steel rebar bending machine  /  steel rebar bender with electric pump



steel rebar bending machine



1. Suitable for pouring steel reinforced concrete and steel bars after the ordinary bending machine is difficult to reach the site and other work site operations.
2. The overall structure is simple, easy to use, good stability, high reliability, greatly improve work efficiency.
3. The use of ultra-high hydraulic system drive, bending strength, the largest bending 32MM steel;
4. Voltage: 330V or 220V; No-load power: 750W; Net weight: 8KG

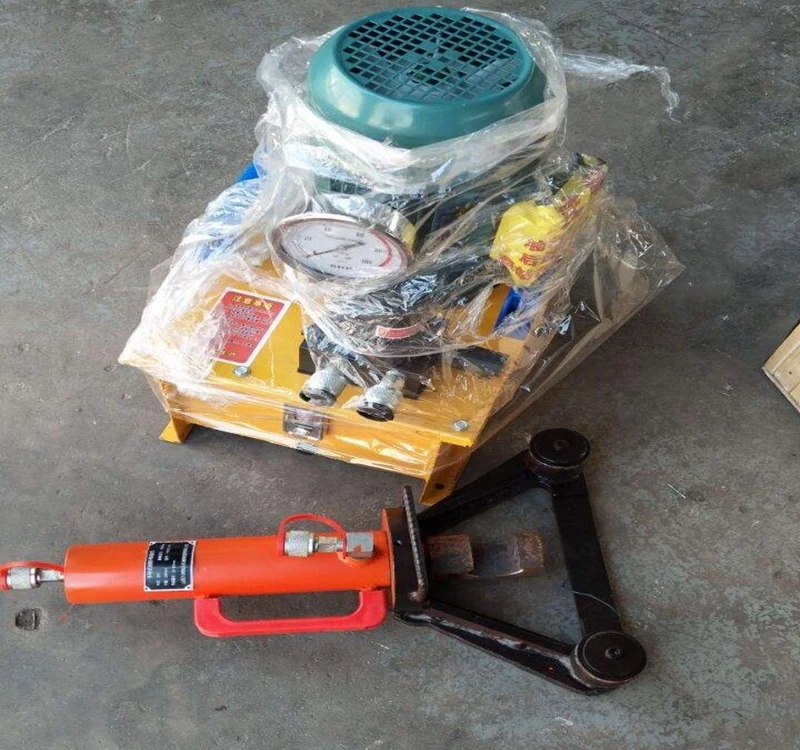

Product Compositions

1. ultra-high pressure electric oil pump

2. portable hydraulic rebar bending machine (straightener)

3. 2 pcs 5 meters long and 70 MPA high pressure standard oil pipes






Steel bar bending machine technical parameters

Model No.

Bending reinforcement range

Bending angle

Cylinder thrust

Electric oil pump power

32

20-32mm

90°

16T

1.5KW 0.75KW

40

25-40mm

90°

20T1.5KW





Product Instructions

1. Remove the package, check the machine appearance, if any query, please contact the service hotline with 24 hours service.

2. Add hydraulic oil into electric oil pump, 32 antiwear hydraulic oil in winter, 46 anti-wear hydraulic oil in other seasons. Add the oil to the middle upper position of liquid level meter on the side of the tank.( 0.75KW motor adds about 16 liters and 1.5 KW motor adds about 35 liters)

3. Please ask a professional electrician (Pls be sure to remember! ! ! Connect with power supply 380V or 220V, pay attention to the clockwise direction of motor running.)

4. connect high pressure tubing, bending machine 2 connectors, electric oil pump 2 connectors.

5. For manual reversing valves, the manual valve has three gears, namely (leftmost position-forward or backward) (middle position-stop (far right-forward or backward)). Please empty the operation after skilled operation to the site for use (Pls be sure to remember!!! ! ! Special remindation is that pulling the manual reversing valve to the center stop position before starting the motor.)

6. start the motor, pull the reversing valve right and left, so that the bending machine piston running idlinging back and forth for 3 times to emptying the air in the curved oil cylinder.

7. Before the operation of the bending machine, we must use the safety cover, if there is no cover please ignore, then can continue the operations.

8. During the operation of the machine, if there is any doubt, please call the service hotline wit 24 hours-service.

9. The warranty period of all factory products is one year if they are not artificially damaged.
