Portable safety emergency firefighting rescue tool with factory price

FOB Reference Price:Get Latest Price
US $1,000-1,600 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Tai Gao, Taigao
Model Number:
TGFDMP-6
Product name:
door breaking tool set
Color:
Customer's Request
Cutting material:
Metal
Application:
Rescue tool
Type:
Hydraulic Cutting Tools
Material:
Carbon Steel
Size:
As below
Certificate:
ISO9001:2008
Usage:
Emergency Suitation
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
professional exporting packages
Port
Qingdao or Tianjin
Lead Time :
1-7 days
Product Description

Product Features

 The tool is powered by light hydraulic manual pump. It is a light weight, large force, high efficiency, single tubing, single hand operation and miniaturized hydraulic rescue equipment.


Product Application:

Traffic accident rescue, earthquake disaster and building collapse rescue, air accident rescue and other accidents, mainly used for rolling doors, metal security door breaking operations.

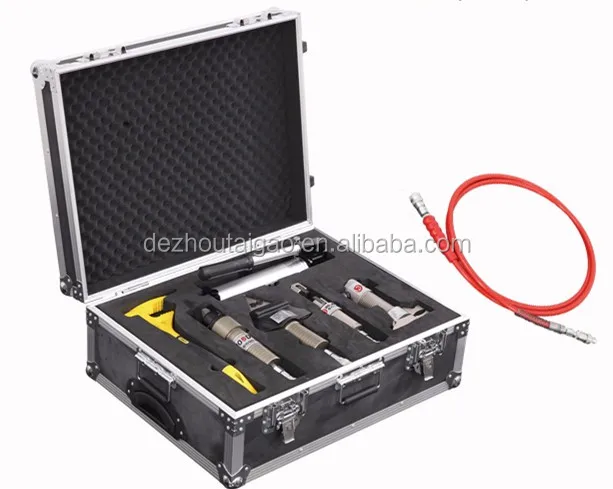

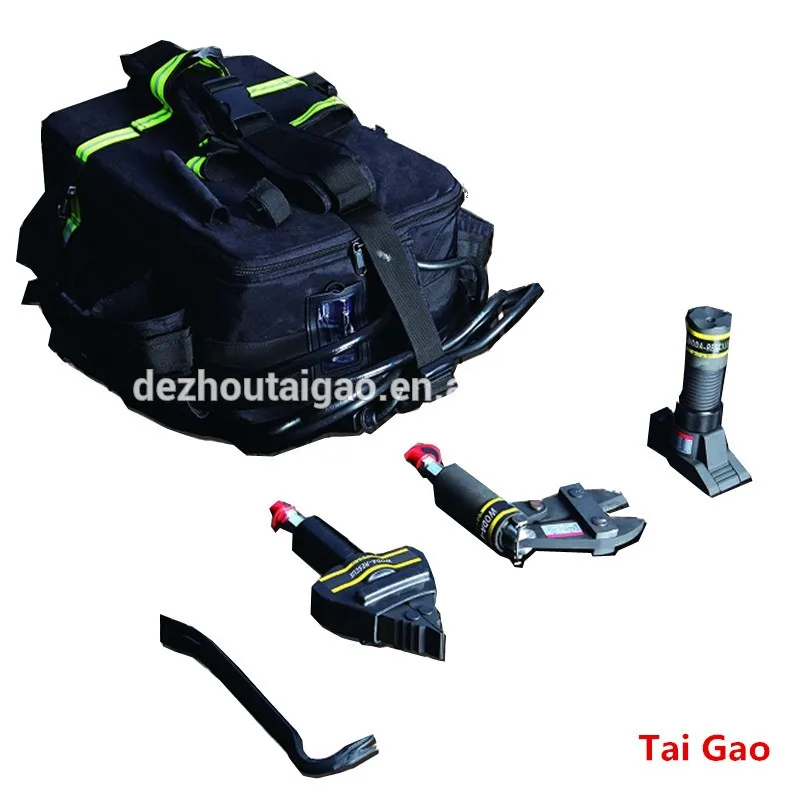

Detailed Image

Edge lifter

Model :GYKM-63-60/100-W
Rate output pressure:  63Mpa
closing length:  ≤210mm
Opening distance :180mm
Separating distance :230mm
Jacking distance:  300mm
Separating force :50KN
Jacking force :60KN
Weight :≤3.9kg
Dimension (L*W*H): 210*135*75mm



Manual pump

Model :BS63/0.8-B
Rated output pressure:  63Mpa
Low output pressure:  5-10Mpa
Low pressure theoretical flow: ≥7.5ml/time
High pessure theoretical flow: ≥0.83ml/time
Hydraulic oil tank capacity :≥0.7L
Max handle force:  ≤260N
Weight: ≤3.2kg
Dimension(L*W*H): 400*120*160mm


Micro expanding tool

Model :GYKZ-42/150-W
Rated output pressure :63Mpa
Opening distance: ≥152mm
Separating force :42KN
Weight: ≤3.3kg
Dimension(L*W*H): 345*160*75mm


Crowbar

Length: 457mm

Weight :1.8kg

Hydraulic breakers

Model :GYSD-63-14/28-A
Rated working pressure:  63Mpa
Maximum opening distance of knife edge: ≥28mm
Max shearing force:  Q235 material,Φ14mm round steel
Weight: ≤3kg


Micro shearing tool

Model:  GYJQ-36-18/60
Maximum opening distance of tool edge: ≥60mm
Rated working pressure :63Mpa
Max shearing off force :Φ18mm
Weight :≤2.8kg
Dimension (L*W*H) :350*105*75mm

Certifications
Packing & Delivery
Our Company

Dezhou Taigao Import and Export Co., Ltd. is located in Dezhou City, Shandong Province, China. our company is a hydraulic products manufacturing, sales and import and export of industrial and trade company.
The company has machining center, CNC lathe, grinder, boring machine, rocker drill, pipe locking machine and other processing equipments. It mainly produces ultra-high pressure hydraulic products, including hollow hydraulic cylinder, ultra-thin hydraulic cylinder, single action cylinder, super-large tonnage double-action hydraulic cylinder, valve base, manual pump, electric pump, Hydraulic cracking tool, split stone rod, portable rebar extruder, portable rebar bending machine, portable rebar straightening machine and various hydraulic pipe locks. The company also provides sales of electromagnetic valve, plunger pump, cargo lifters, hydraulic pressure packing-machine, rescue equipment and some others.
Dezhou Taigao import and export tries hard to create a professional sales company which has rich products and quality assurance to become one-stop service of purchase and wholesale of China's hydraulic accessories and equipments.

Our Service
FAQ

Q1: How to contact sales?
A1: Please call: +8615953771551 for pre-sales or click the contact find our website and email address.
Q2: How can I buy products in my country?
A2: Please tell me your order list,i will make exact quotation for you.
Q3: How long does it take to get the product If I place an order?
A3: after receive payment,we will deliver in 7-10 days.
Q4: How to make payment?
A4: T/T company account,western union,money gram or alibaba trade assurance order.
Q5: There are many kinds of hydraulic tools and pump,i don't know which one to choose
A5: Wecome to consult my online trademanager,i will suggest you the fitted one,or email me and whatsapp me.i will reply you ASAP
