High quality hydraulic rescue equipment, rescue tool, burglarproof door breaking tool four pieces

FOB Reference Price:Get Latest Price
US $800-900 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
100 Piece/Pieces per Week
Port:
Qingdao or Tianjin
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland), Shandong ,Dezhou,China (Mainland)
Brand Name:
Degao
Model Number:
DGFDMP-4
Type:
Breaking tool
Rated output pressure of manual pump:
63Mpa
Function:
Rescue
Material:
Steel
Brand Name::
Degao
Application::
rescue
Keyword:
Rescue equipment
Usage:
Emergency Suitation
Color:
Requirement
Packaging & Delivery
Packaging Details
Export standard wooden cases or according to your requirements
Delivery Time
1-7days depends on order quantity
   Burglarproof door breaking tool group (four pieces)



Product Description

Accessories: manual pump, edge lift, micro expander, crowbar, 3 m high pressure hose.





Application scope

Traffic accident rescue, earthquake disaster and building collapse rescue, air accident rescue and other accidents, mainly used for rolling doors, metal security door breaking operations.



Product features:

The tool is powered by light hydraulic manual pump. It is a light weight, large force, high efficiency, single tubing, single hand operation and miniaturized hydraulic rescue equipment.





Technical Parameters:

The main technical parameters of the edge lifter

Model

GYKM-63-60/180-W

Rate output pressure

63Mpa

closing length

210mm

 Opening distance

180mm



Separating distance

230mm

Jacking distance

300mm

   Separating force

50KN

 Jacking force

60KN

Weight

3.9kg



Dimension (L*W*H)

210*135*75mm



Manual pump main technical parameters

Model

BS63/0.8-Q



Rated output pressure

63Mpa



Low output pressure

5-10Mpa



Low pressure theoretical flow

7.5ml/second

High pessure theoretical flow

0.83ml/second

Hydraulic oil tank capacity

0.7L



Max handle force

260N

 Weight

3.2kg

Dimension(L*W*H)

400*120*160mm





Micro expanding tool

Model

GYKZ-42/152-W



Rated output pressure

63Mpa



 Opening distance

152mm



 Separating force

42KN

 Weight

3.3kg

Dimension(L*W*H)

345*160*75mm



crowbar main parameters



 Length

457mm

Weight

1.8kg

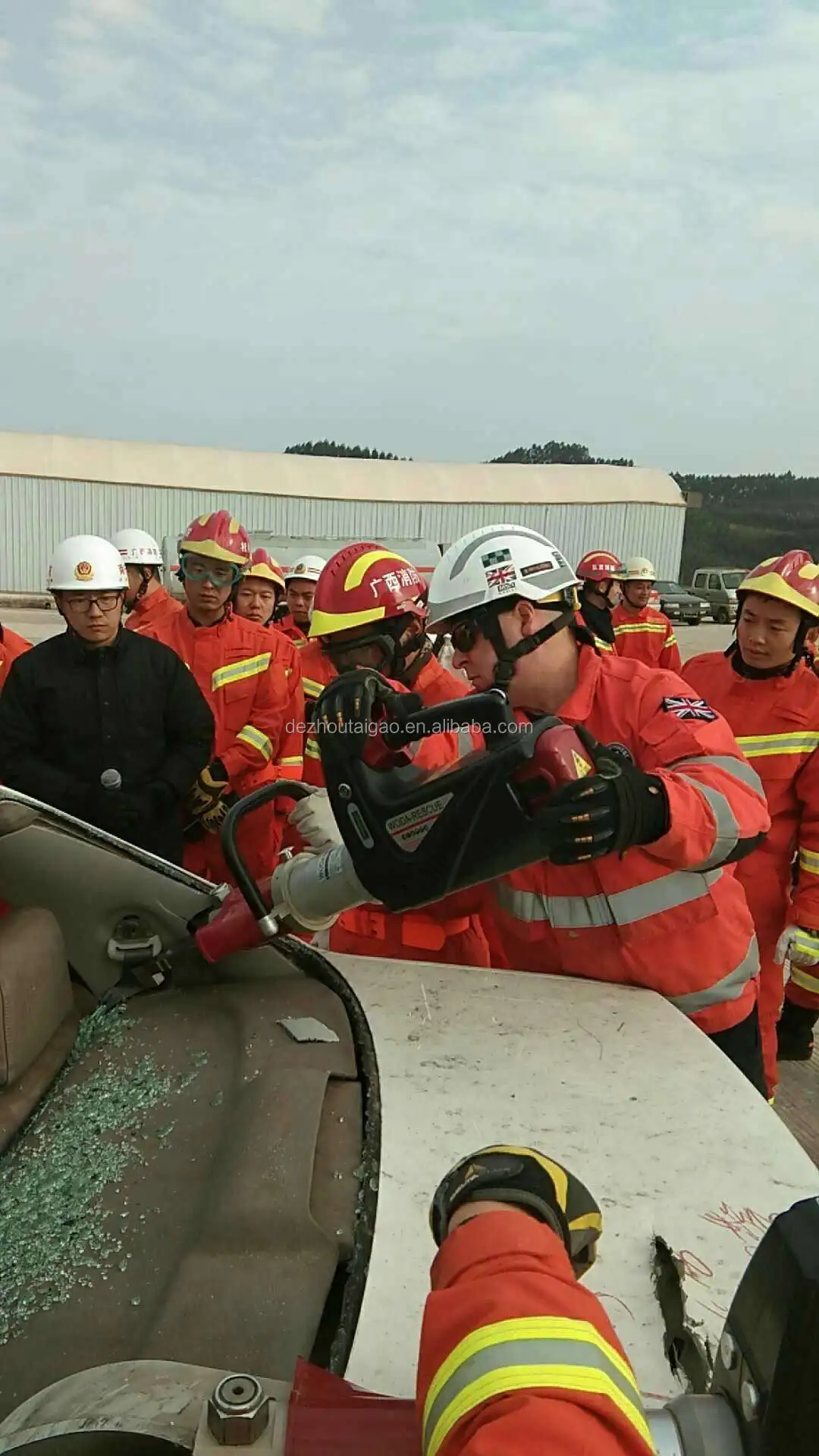

Product Pictures






Our Services
1.Hong is your warranty period?

Total free warranty service of products is one-year(Artificial damage and incorrect use is not included).
 2.Quality control
Tests involve in every production process preventing quality problem as much as possible. At least 3 times' tests are applied into each set of final completed equipment before out of workshop.
3.If there are some problems with the equipment, can you guarantee that you will bear the cost of all return?
During warranty period, we are committed to bear all the costs for a quality problem. The fastest method is garanteed to solve the problem.
Welcome to our factory

Brief introduction

Dezhou Taigao Import and Export Co., Ltd. is located in Dezhou City, Shandong Province, China. Dezhou Taigao import and export Co., Ltd. and Dezhou Degao hydraulic machinery Co., Ltd. belong to the same company, is a hydraulic products manufacturing, sales and import and export of industrial and trade company.

The company has machining center, CNC lathe, grinder, boring machine, rocker drill, pipe locking machine and other processing equipments. It mainly produces ultra-high pressure hydraulic products, including hollow hydraulic cylinder, ultra-thin hydraulic cylinder, single action cylinder, super-large tonnage double-action hydraulic cylinder, valve base, manual pump, electric pump, Hydraulic cracking tool, split stone rod, portable rebar extruder, portable rebar bending machine, portable rebar straightening machine and various hydraulic pipe locks. The company also provides sales of electromagnetic valve, plunger pump, cargo lifters, hydraulic pressure packing-machine, rescue equipment and some others.

Dezhou Taigao import and export tries hard to create a professional sales company which has rich products and quality assurance to become one-stop service of purchase and wholesale of China's hydraulic accessories and equipments.
