Low Price Small Hydraulic Hand Operated Manual Oil Pump SYB-1

FOB Reference Price:Get Latest Price
$90.00 - $150.00 / Piece | 1 Piece/Pieces (Min. Order)
Maximum Flow Rate:
Report Suspicious Activity
Quick Details
Brand Name:
Model Number:
Place of Origin:
Shandong, China
High Pressure, High Pressure
Single-stage Pump, Gear Pump+Motor
Standard or Nonstandard:
Reciprocating Pump
Product name:
small hydraulic hand pump
Carbon Steel
Construction Machinery, oil
Hydraulic Piston Pump, Oil
Supply Ability
Supply Ability:
8000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
wooden box
Qingdao, Xingang
Video Description

Low Price Small Hydraulic Hand Operated Manual Oil Pump SYB-1



Product Description


SYB-1 hydraulic hand pump:

Rated pressure:


High pressure:63Mpa
Low pressure:1Mpa

Rated displacement:


High pressure:2.3ml/time
Low pressure:12.5ml/time

Max hand force:500N
Oil tank capacity:0.7L
Oil mouth thread:M16×1.5




Manual hydraulic hand pump dates:

a. High pressure hydraulic steel hand pumps are the solution for tough jobs.
b. Reduced handle effort and ergonomic grip for less operator fatigue.
c. Two-speed operation for fast and easy operation.
d. Vent free reservoir eliminates spills.
e. Quick grip handle allows for easy transport.
f. Integral reservoir over-pressurization protection.
g. All steel construction, chrome plated plunger and wiper system for durable, long lasting performance.





The function of a manual hydraulic pump is to convert the mechanical energy of a power engine (such as a motor and an internal combustion engine) into the pressure energy of a liquid.


Working principle: The cam is rotated by the motor. When the cam pushes the plunger upward, the seal volume formed by the plunger and cylinder block decreases, and the oil is extruded from the seal volume. When the cam rotates to the descending part of the curve, the spring forces the plunger down to form a certain vacuum. The oil in the tank enters the sealing volume under the action of atmospheric pressure. The cam causes the plunger to rise and fall continuously, the seal volume decreases and increases periodically, and the pump continuously absorbs and drains oil.



Hand hydraulic pump detail parts pics:

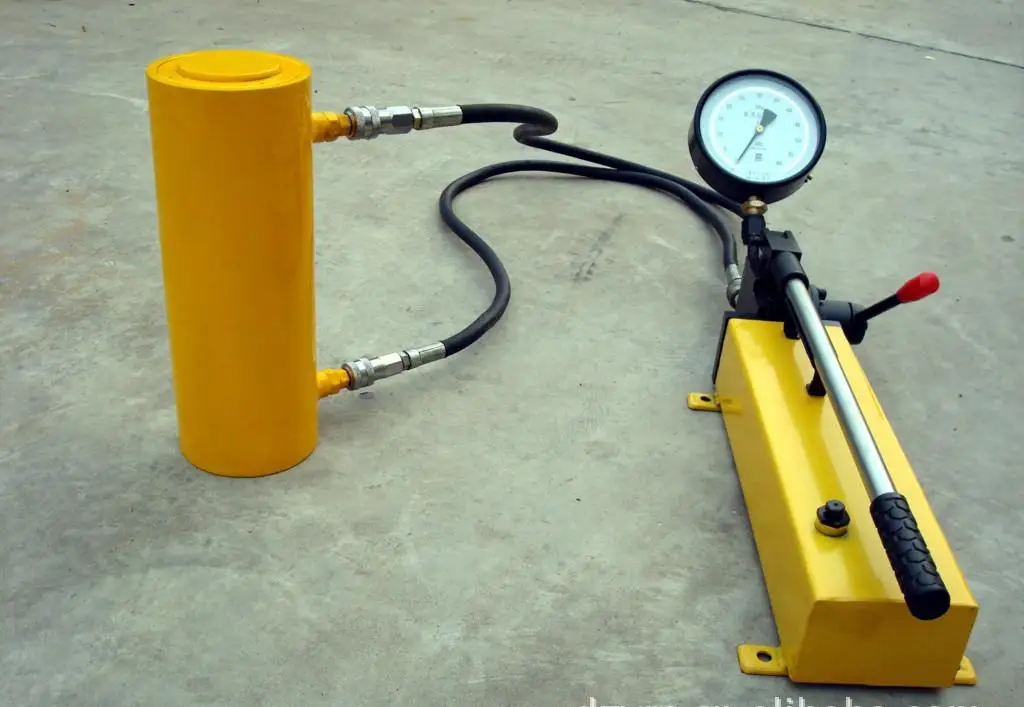

The hydraulic pump usually are used with the hydraulic cylinders.If you need it, pls tell me,will suggest you the best model.

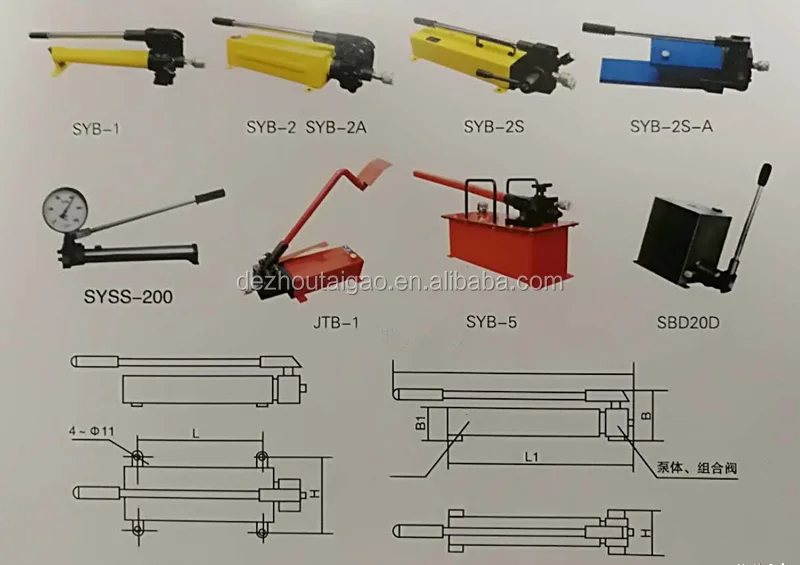

We have many model hydraulic pumps,pic as below:

Company Information

Our company introduction


     Dezhou Taigao Import and Export Co., Ltd. is located in Dezhou City, Shandong Province,China.

     Our company has machining center, CNC lathe, grinder, boring machine, rocker drill, pipe locking machine and other processing equipments. It mainly produces ultra-high pressure hydraulic products, including hollow hydraulic cylinder, ultra-thin hydraulic cylinder, single action cylinder, super-large tonnage double-action hydraulic cylinder, valve base, manual pump, electric pump, Hydraulic cracking tool, split stone rod, portable rebar extruder, portable rebar bending machine, portable rebar straightening machine and various hydraulic pipe locks. The company also provides sales of electromagnetic valve, plunger pump, cargo lifters, hydraulic pressure packing-machine, rescue equipment and some others.

     Dezhou Taigao import and export tries hard to create a professional sales company which has rich products and quality assurance to become one-stop service of purchase and wholesale of China's hydraulic accessories and equipments.


We also make other model machines.as below pics show:


Our Services


1. Any inquires will be replied within 24 hours

2. We can provide professional manufacture and have the R&D department

3. After-sale service

Ø  Overseas third-party support available

Ø Before delivery the products are strictly inspected

Ø We also can do alibaba trade assurance order

4. All of our products have 12 month warranty

5. The goods will be delivered within 7-15 days after receive payment and packaged by wooden box


Q1: How to contact sales?


A1: Please call: +8613275343576 for pre-sales or click the contact find our website and  email address.


Q2: How can I buy products in my country?

A2: Please tell me your order list,i will make exact quotation for you.


Q3:  How long does it take to get the product If I place an order?

 A3: after receive payment,we will deliver in 7-10 days.


Q4: How to make payment?

A4:  T/T company account,western union,money gram or alibaba trade assurance order.


Q5: There are many kinds of hydraulic tools and pump,i don't know which one to choose

A5: Wecome to consult my online trademanager,i will suggest you the fitted one,or email me and whatsapp me.i will reply you ASAP


Welcome to our factory:


We promise good quality and cheapest price for you, for any question,please kindly contact me :
